Yamaha Outboard Parts - Repair Kit 3 - F40AET (2001) | Flood Marine

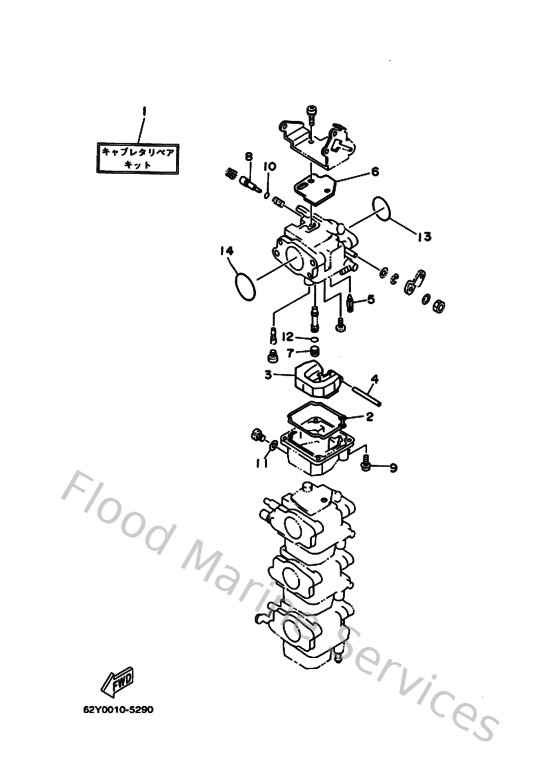

Diagram: Repair Kit 3

Diagram

Parts List

Reference
Description
Price


1
62YW00930000
Carburetor repair kit
Loading…

↗
2
6L2143840000
Gasket, float chamber
Loading…

↗
3
6L2143850000
Float
Loading…

↗
4
6E5143860100
Pin, float
Loading…

↗
5
6L2143920000
Valve, needle
Loading…

↗
6
62Y143990000
Gasket
Loading…

↗
7
62Y143550000
Plug
Loading…

↗
8
12V141050000
Pilot screw set
Loading…

↗
9
979800411200
Screw, pan head (686)
Loading…

↗
10
5H0143970000
O-ring
Loading…

↗
11
62Y143980000
Gasket
Loading…

↗
12
6F5143970000
O-ring
Loading…

↗
13
9321030MH400
O-ring(62y)
Loading…

↗
14
9321035M8600
O-ring(6l2)
Loading…

↗
