15FMH (2003)
STARTER

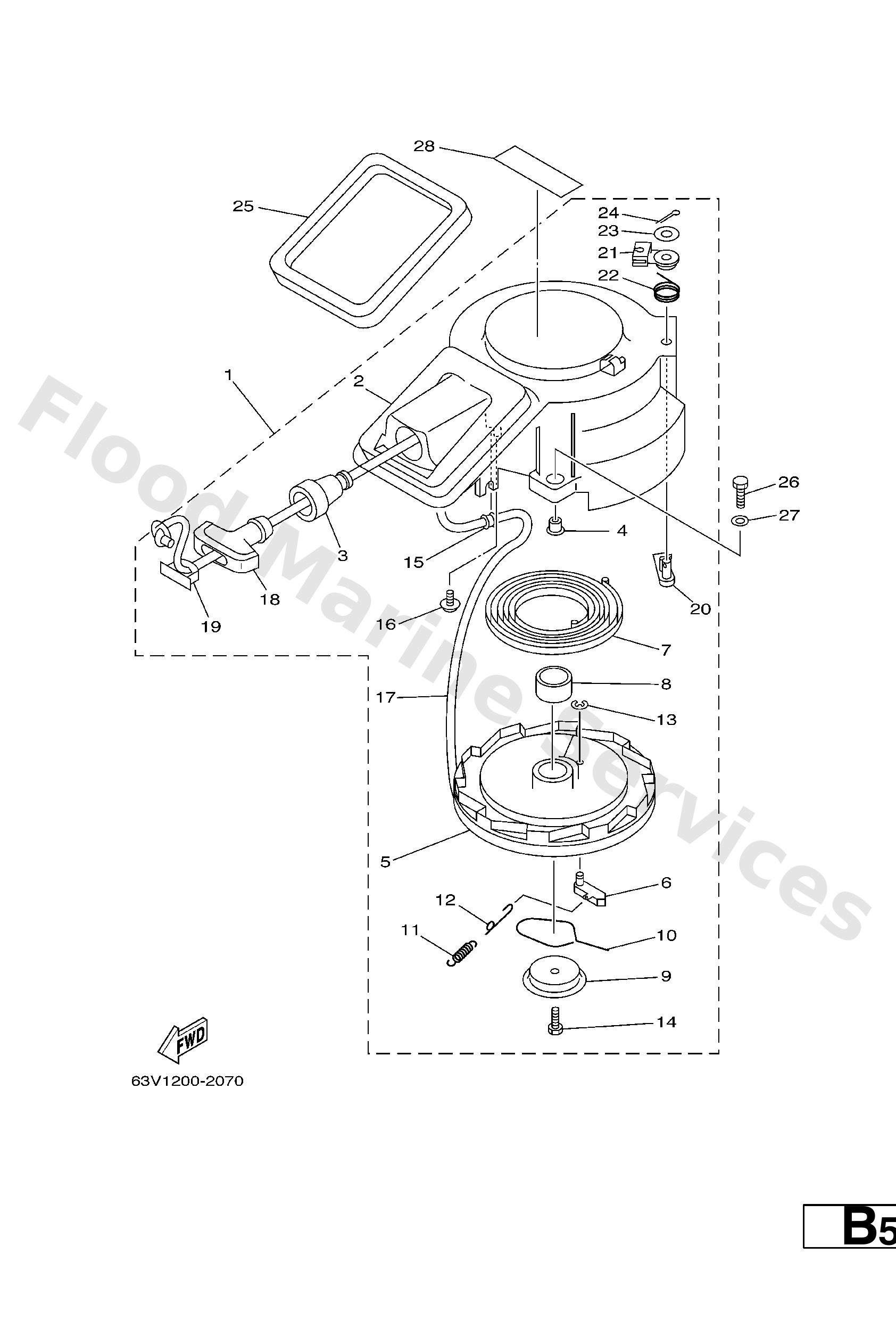

Diagram: STARTER
Parts List
Reference
Description
Price
1
63V−15710−12
WITH SAFETY DEVICE
Starter assembly
Loading…
↗
2
63V−15711−01
Case, starter
Loading…
↗
3
63V−15795−01
Guide, rope
Loading…
↗
4
90387−06M05
Collar(6h4)
Loading…
↗
5
63V−15714−00
Drum, sheave
Loading…
↗
6
63V−15741−00
Pawl, drive
Loading…
↗
7
63V−15713−00
Spring, starter
Loading…
↗
8
63V−15753−00
Bush
Loading…
↗
9
63V−15716−00
Plate, drive
Loading…
↗
10
63V−15705−01
Spring, drive pawl
Loading…
↗
11
63V−15767−01
Spring
Loading…
↗
12
63V−15784−01
Spring, return
Loading…
↗
13
63V−15744−00
Circlip
Loading…
↗
14
63V−15768−00
Screw
Loading…
↗
15
63V−15764−00
Collar 1
Loading…
↗
16
63V−15793−00
Screw
Loading…
↗
17
*
item_description
Loading…
↗
18
6G1−15755−00
Handle, starter
Loading…
↗
19
6G1−15779−00
Cover
Loading…
↗
20
63V−15794−00
Stopper
Loading…
↗
21
63V−15748−00
Plunger, starter stop
Loading…
↗
22
63V−15734−00
Spring, return
Loading…
↗
23
63V−15726−00
Washer, flat
Loading…
↗
24
91490−16018
Pin, cotter (e57)
Loading…
↗
25
63V−15762−00
Seal, rubber 2
Loading…
↗
26
97095−06020
Bolt(7u8)
Loading…
↗
27
92995−06600
Washer, plain (646)
Loading…
↗
28
6A1−83625−41
FOR CARIB
Mark 5
Loading…
↗
