E55CMH (2005)
STARTING MOTOR

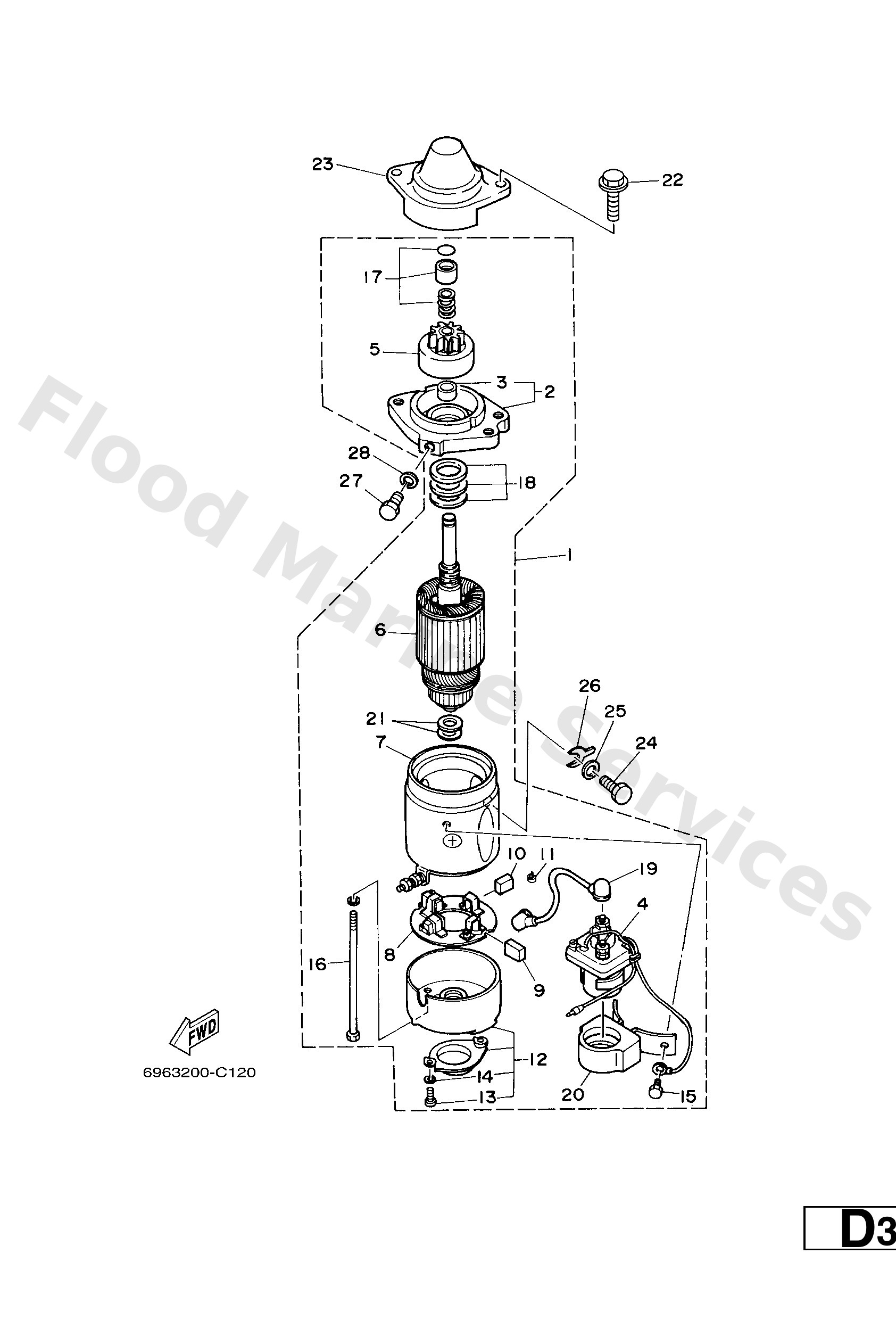

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6978180013
Starting motor assembly
Loading…
↗
2
6768183010
Front cover assembly
Loading…
↗
3
6888183100
Metal, front
Loading…
↗
4
6828194111
Starter, relay
Loading…
↗
5
6638183212
Pinion assembly
Loading…
↗
6
6768185012
Armature assembly
Loading…
↗
7
6638181011
Stator assembly
Loading…
↗
8
6638184011
Brush holder assembly
Loading…
↗
9
6638181111
Brush 1
Loading…
↗
10
6638181211
Brush 2
Loading…
↗
11
6638181310
Spring, brush
Loading…
↗
12
6638182012
Rear bracket assembly
Loading…
↗
13
9850304012
Screw, pan head (686)
Loading…
↗
14
9290104100
Ybs67-4 washer, spring
Loading…
↗
15
9731306010
Bolt
Loading…
↗
16
6638182610
Bolt 1
Loading…
↗
17
6978185712
Pinion stopper set
Loading…
↗
18
6978180910
Washer kit
Loading…
↗
19
6978181510
Wire, lead
Loading…
↗
20
6978195210
Holder, relay
Loading…
↗
21
6888182400
Washer 2
Loading…
↗
22
9751308640
Bolt, with washer
Loading…
↗
23
663818420194
Cover 3
Loading…
↗
24
9701308025
Bolt (682)
Loading…
↗
25
9290308100
Ybs67-8 washer, spring
Loading…
↗
26
6638116200
Washer, Plain
Loading…
↗
27
9701308016
Bolt, hexagon
Loading…
↗
