F100B (2023)
STARTING MOTOR

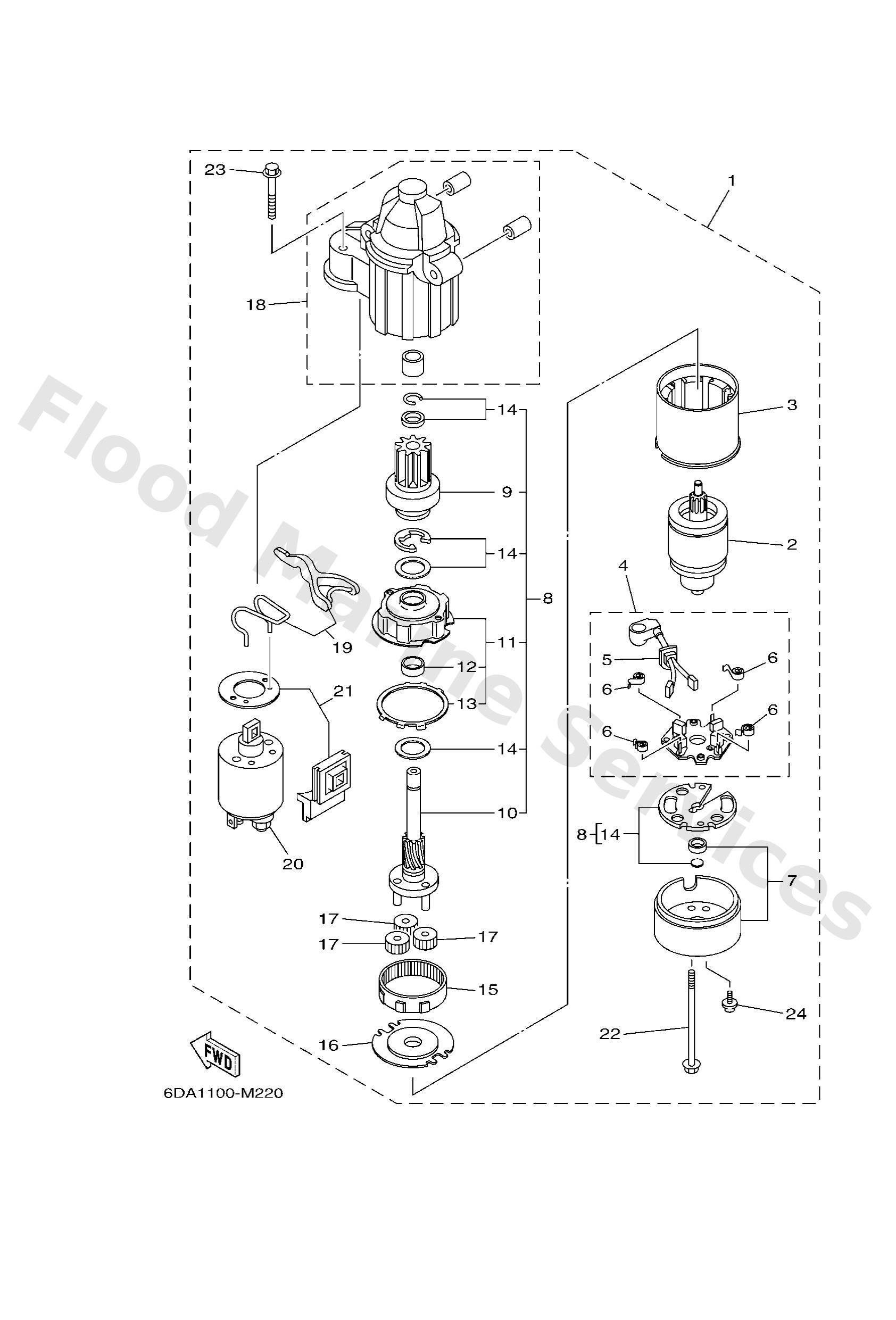

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6EM8180002
Starting motor assembly
Loading…
↗
2
67F8185000
Armature assembly
Loading…
↗
3
67F8181000
Stator assembly
Loading…
↗
4
69J8184011
Brush holder assembly
Loading…
↗
5
69J8180111
Brush set
Loading…
↗
6
67F8181300
Spring, brush
Loading…
↗
7
6CB8182000
Rear bracket assembly
Loading…
↗
8
6CB8180700
Gear assembly, starting motor
Loading…
↗
9
6CB8183200
Clutch, over run
Loading…
↗
10
6CB8183600
Spring, lever
Loading…
↗
11
67F8182100
Bracket, center 1
Loading…
↗
12
67F8184100
Bearing
Loading…
↗
13
67F8183R00
Gasket
Loading…
↗
14
6CB8180900
Washer kit
Loading…
↗
15
67F8189100
WITH 67F-8183R-00
Gear, ring
Loading…
↗
16
67F8183000
Bracket, center 2
Loading…
↗
17
60V8183T00
Gear, idler
Loading…
↗
18
6CB8184200
Cover
Loading…
↗
19
6C58183900
Lever assembly
Loading…
↗
20
6EM8194101
Starter relay assembly
Loading…
↗
21
6C58186900
Cover, dust
Loading…
↗
22
6CB8182600
Bolt
Loading…
↗
23
69J8182800
Bolt 2
Loading…
↗
24
67F8184600
Screw
Loading…
↗
