Yamaha Outboard Parts - STARTING MOTOR - FL250AET (2008) | Flood Marine

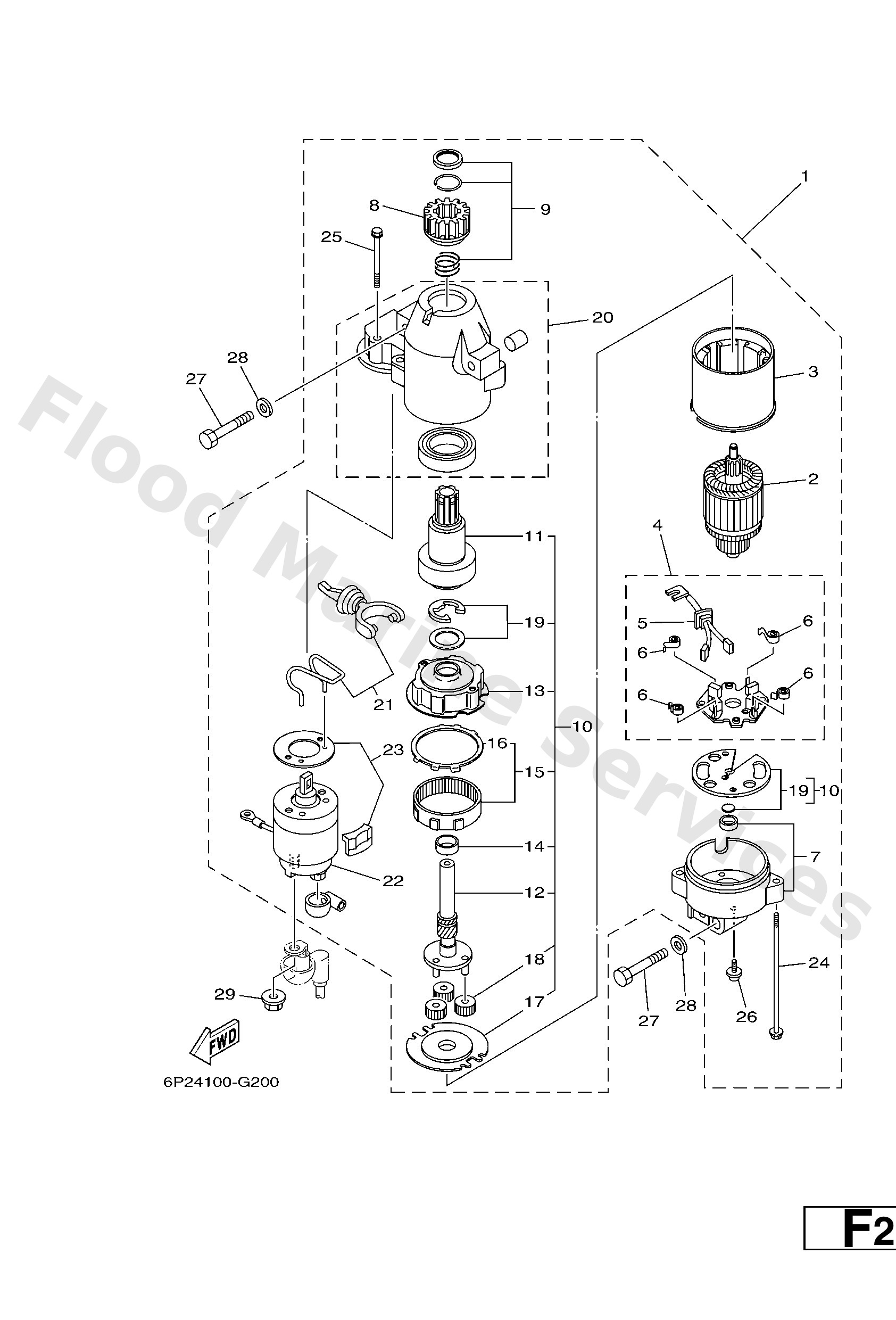

Diagram: STARTING MOTOR

Diagram

Parts List

Reference
Description
Price


1
63P8180000
Starting motor assembly
Loading…

↗
2
67F8185000
Armature Assy
Loading…

↗
3
67F8181000
20
Loading…

↗
4
69J8184000
Brush Holder Assy
Loading…

↗
5
69J8180100
20
Loading…

↗
6
67F8181300
Spring, Brush
Loading…

↗
7
68F8182000
Rear Bracket Assy
Loading…

↗
8
67F8180800
20
Loading…

↗
9
67F8185700
Pinion Stopper Set
Loading…

↗
10
67F8180700
20
Loading…

↗
11
67F8183200
Clutch, Over Run
Loading…

↗
12
67F8183600
Shaft, Pinion
Loading…

↗
13
67F8182100
Bracket, Center 1
Loading…

↗
14
67F8184100
Bearing
Loading…

↗
15
67F8189100
Gear, Ring
Loading…

↗
16
67F8183R00
Gasket
Loading…

↗
17
67F8183000
Bracket, Center 2
Loading…

↗
18
60V8183T00
Gear, Idler
Loading…

↗
19
67F8180900
20
Loading…

↗
20
69J8184200
Cover
Loading…

↗
21
69J8183900
Lever Assy
Loading…

↗
22
63P8194100
Starter Relay Assy
Loading…

↗
23
69J8186900
Cover, Dust
Loading…

↗
24
6K78182611
Bolt
Loading…

↗
25
69J8182800
Screw 2
Loading…

↗
26
67F8184600
Screw
Loading…

↗
27
9701308045
20
Loading…

↗
28
9290308600
Washer, Plate
Loading…

↗
29
9017908003
Nut
Loading…

↗
