Yamaha Outboard Parts - STEERING GUIDE 2 - LF200CB (2023) | Flood Marine

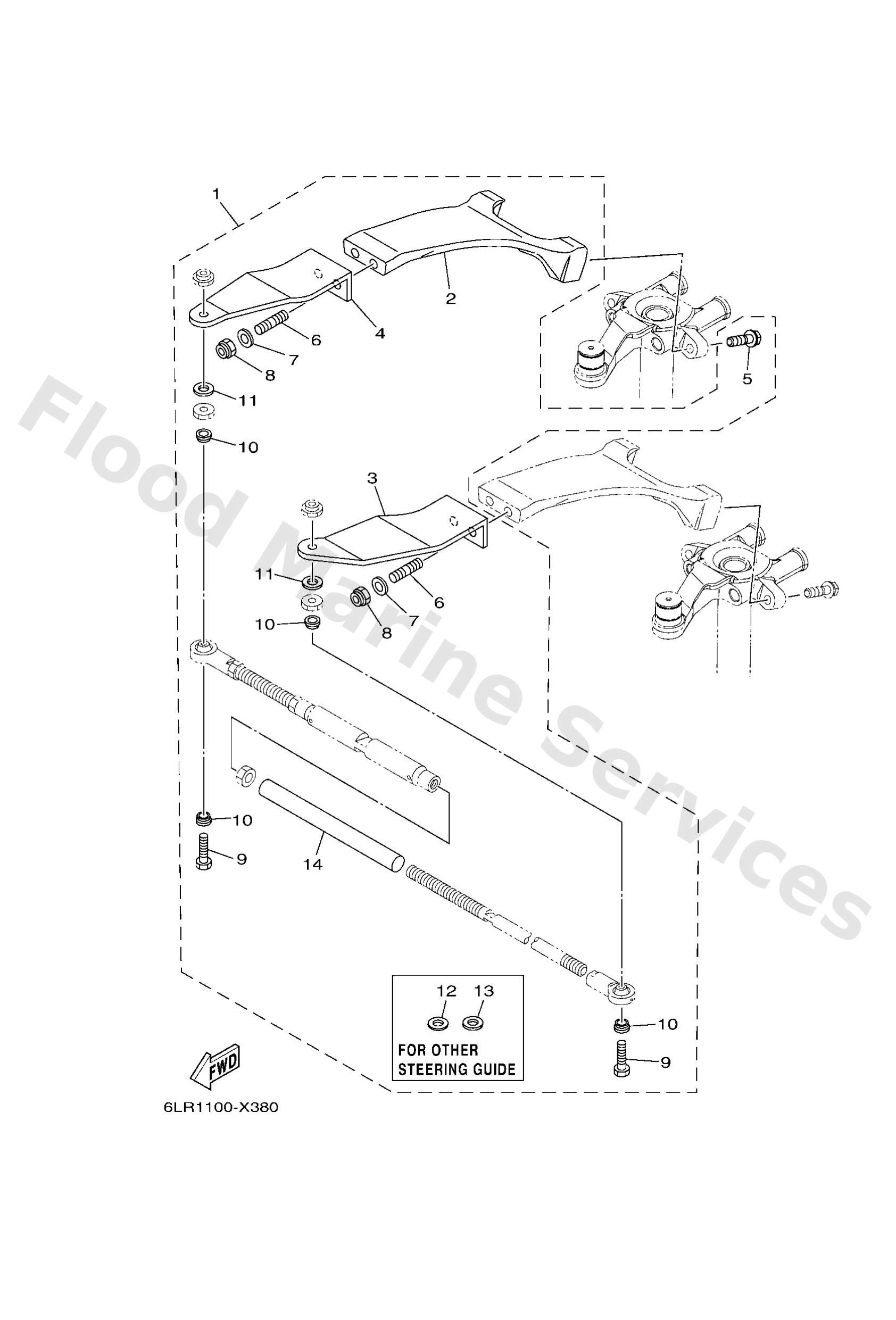

Diagram: STEERING GUIDE 2

Diagram

Parts List

Reference
Description
Price


1
6LR61301008D AP
Twin kit
Loading…

↗
2
6LP45851008D
Fork, steering
Loading…

↗
3
6LP4744600
Hook 1
Loading…

↗
4
6LR4744600
Hook 1
Loading…

↗
5
9011910040
Bolt, with washer
Loading…

↗
6
9011610063
Bolt, stud
Loading…

↗
7
9020110049
Washer, plate
Loading…

↗
8
9018510027
Nut, self-locking
Loading…

↗
9
9010110M39
Bolt, hexagon (663)
Loading…

↗
10
6LP4283400
Collar
Loading…

↗
11
9020110M04
Washer, plate(6g8)
Loading…

↗
12
9020110081
Washer, plate
Loading…

↗
14
9044615006
Hose
Loading…

↗
