Yamaha Outboard Parts - Starting Motor - 200GETOL (1999) | Flood Marine

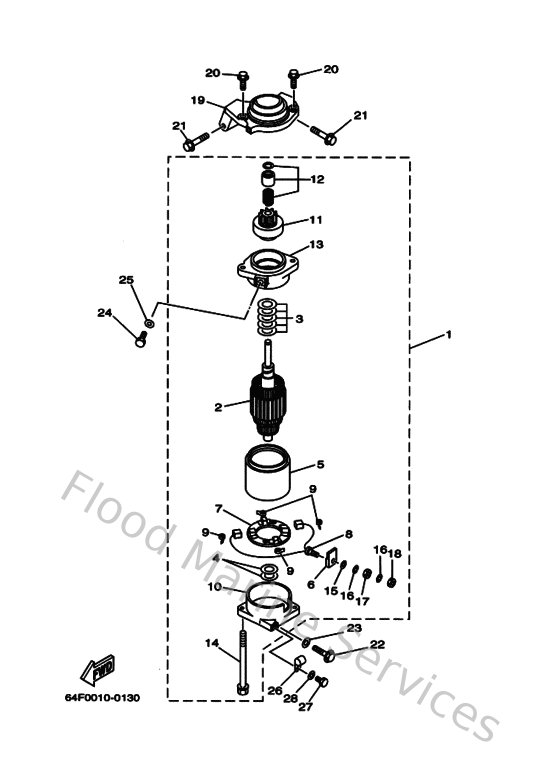

Diagram: Starting Motor

Diagram

Parts List

Reference
Description
Price


1
6N7818001000
Starting motor assembly
Loading…

↗
2
6N7818501000
Armature assembly
Loading…

↗
3
61A818090000
Washer kit
Loading…

↗
4
61A818240000
Washer 2
Loading…

↗
5
6N7818100000
Stator assembly
Loading…

↗
6
6K78182G1000
Bush, terminal
Loading…

↗
7
6N7818400000
Brush holder assembly
Loading…

↗
8
6N7818010000
Brush set
Loading…

↗
9
6N7818130000
Spring, brush
Loading…

↗
10
6N7818201000
Rear bracket assembly
Loading…

↗
11
6N7818070000
Gear assembly, starting motor
Loading…

↗
12
6N7818570000
Pinion stopper set
Loading…

↗
13
6N7818300000
Front bracket assembly
Loading…

↗
14
6K7818261000
Bolt
Loading…

↗
15
6E58182E1000
Washer, spring
Loading…

↗
16
6E58182F1000
Washer,plain
Loading…

↗
17
6E58182A1000
Nut
Loading…

↗
18
6E58182K1000
Nut
Loading…

↗
19
6K7818220094
Bracket, starting motor
Loading…

↗
20
9011908M7600
Bolt, with washer(6e5)
Loading…

↗
21
9011908M7700
Bolt, with washer(6e5)
Loading…

↗
22
9011908M5700
Bolt, with washer
Loading…

↗
23
929900860000
Washer, plain (663)
Loading…

↗
24
970950801600
Bolt, hexagon deep recess
Loading…

↗
26
9046508M0700
Clamp (1e6)
Loading…

↗
27
970950601200
Bolt(gh1)
Loading…

↗
28
929950660000
Washer, plain (646)
Loading…

↗
