E40XMH (1998)
Steering 1

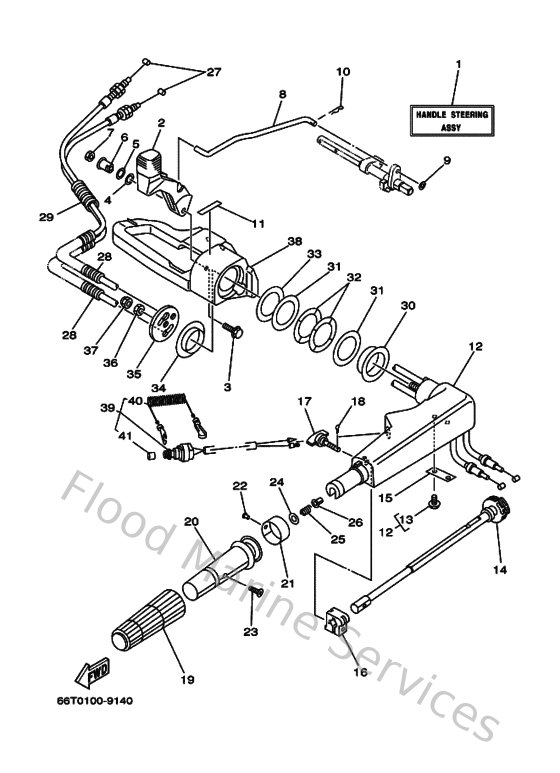

Diagram: Steering 1
Parts List
Reference
Description
Price
1
66TW0084004D
Handle Steering assembly
Loading…
↗
2
66T441110000
Handle, gear shift
Loading…
↗
3
9011906M8500
Bolt, with washer
Loading…
↗
4
9020112M0700
Washer, plate
Loading…
↗
5
9020612M0000
Washer, wave (676)
Loading…
↗
6
65W421230000
Bolt, handle joint
Loading…
↗
7
953800660000
Nut(661)
Loading…
↗
8
66T441240000
Link, shift rod
Loading…
↗
9
929900620000
Ybs66-6 washer, plain
Loading…
↗
10
904681800800
Clip 620436610000
Loading…
↗
11
6X3441910000
Indicator, shift
Loading…
↗
12
65W42101014D
Handle, steering
Loading…
↗
13
9010906M8600
Bolt
Loading…
↗
14
65W421380000
Lever, throttle
Loading…
↗
15
65W421590000
Stay
Loading…
↗
16
6EEG21260000
Friction, steering
Loading…
↗
17
65W421250000
Bolt, friction adjusting
Loading…
↗
18
914902001000
Pin, cotter
Loading…
↗
19
6F642177A000
Rubber, handle
Loading…
↗
20
664421190000
Grip, steering handle
Loading…
↗
21
6G1421372000
Indicator, throttle
Loading…
↗
22
9026902M0900
Rivet(6l5)
Loading…
↗
23
9014905M1300
Screw, countersunk
Loading…
↗
24
929031060000
Washer, plate
Loading…
↗
25
905012321500
Spring (655)
Loading…
↗
26
903860803200
Bushing (650)
Loading…
↗
27
66T263010000
Throttle cable assembly
Loading…
↗
29
9044610M8600
Hose
Loading…
↗
30
9038640MA000
Bushing
Loading…
↗
31
9020143M0000
Washer, plate
Loading…
↗
32
9020643M2200
Washer, wave
Loading…
↗
33
9020243M5700
Washer, plate
Loading…
↗
34
9038640M9900
Bush
Loading…
↗
35
65W421310100
Cover, handle steering
Loading…
↗
36
953801070000
Nut (682)
Loading…
↗
37
957801030000
Nut, nylon (6e5)
Loading…
↗
38
65W42121018D
Bracket
Loading…
↗
39
66T825750000
Engine stop switch assembly
Loading…
↗
40
682825560000
Lanyard, stop switch
Loading…
↗
41
6898257Y0000
Cap
Loading…
↗
