F40AET (2001)
Steering Guide

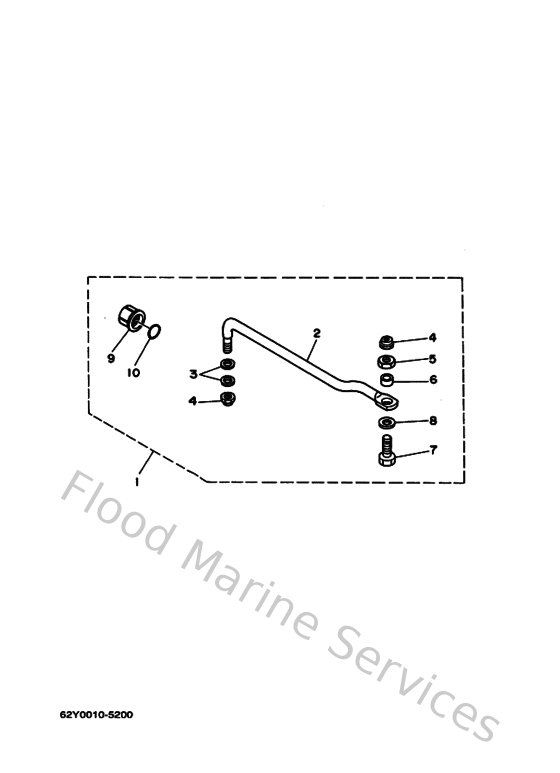

Diagram: Steering Guide
Parts List
Reference
Description
Price
1
63D613500000
Steering guide attachment kit
Loading…
↗
2
63D613510000
Rod, steering link
Loading…
↗
3
9020110M2000
Washer, plate (663)
Loading…
↗
4
9018509M0100
Nut, nylon (663)
Loading…
↗
5
9017009M0300
Nut (689)
Loading…
↗
6
9038710M4200
Coller (688)
Loading…
↗
7
9010109M0100
Bolt(62x)
Loading…
↗
8
9020110M6300
Washer, plate
Loading…
↗
9
6E5431450100
Cap, clamp bracket
Loading…
↗
10
932101627500
O-ring
Loading…
↗
