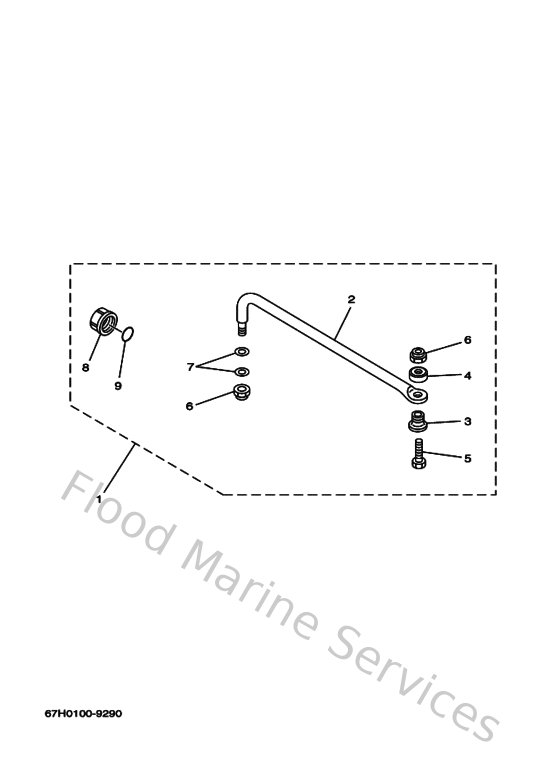

Diagram: Steering Guide Attachment 1

Diagram

Parts List

Reference
Description
Price


1
6E5613500200
Steering guide attachment kit
Loading…

↗
2
6E5613510100
Rod, steering link
Loading…

↗
3
9038710M6100
Collar (6e5)
Loading…

↗
4
9056012M0100
Spacer (6e5)
Loading…

↗
5
6E5613550000
Bolt
Loading…

↗
6
9018509M0100
Nut, nylon (663)
Loading…

↗
7
9020110M2000
Washer, plate (663)
Loading…

↗
8
6E5431450000
Cap, clamp bracket
Loading…

↗
9
932101627500
O-ring
Loading…

↗
