250AETO (2004)
TOP COWLING

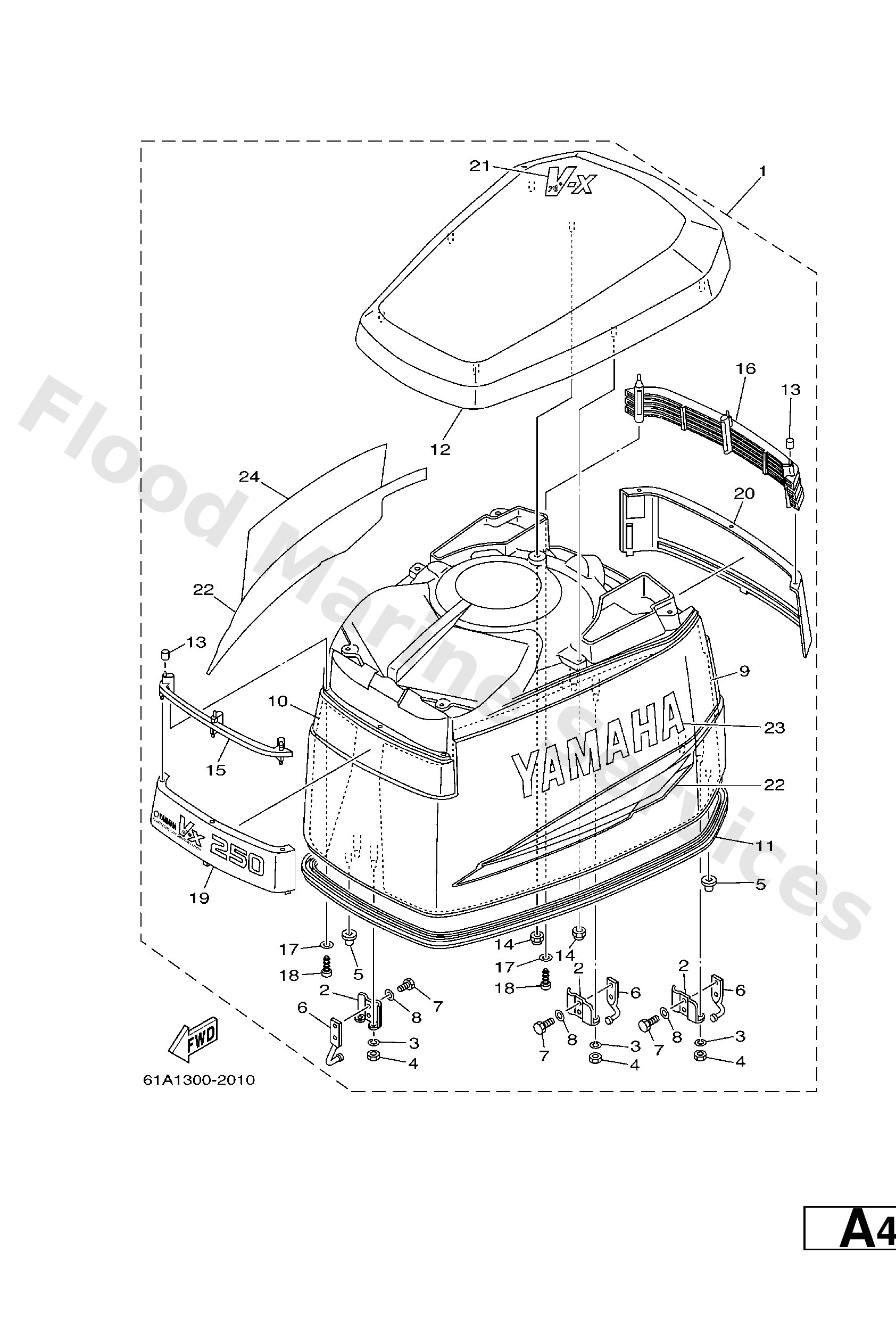

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
61A4261050NA
Top cowling assembly
Loading…
↗
2
6R34264700
Holder, clamp band
Loading…
↗
3
9299006100
Washer(6a1)
Loading…
↗
4
9538006600
Nut(661)
Loading…
↗
5
6R34266200
Damper
Loading…
↗
6
6R34281400
Hook, clamp
Loading…
↗
7
9709506012
Bolt(gh1)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
61A4261902
Damper, Form
Loading…
↗
10
61A4262702
Damper, Form
Loading…
↗
11
61A4261501
Seal
Loading…
↗
12
61A42613014D
Molding, Air Duct
Loading…
↗
13
9038504M05
Bush(6r2)
Loading…
↗
14
9017906M24
Nut(6j8)
Loading…
↗
15
61A4262600
Louver, 1
Loading…
↗
16
61A4263600
Louver, 2
Loading…
↗
17
9299004600
Washer, plain (646)
Loading…
↗
18
9778040520
Ybs83-420 screw,panh,tapping
Loading…
↗
19
61A42686B0
Emblem, Front
Loading…
↗
20
61A4268730
Emblem, Rear
Loading…
↗
21
61A42683A0
Mark, Cowling
Loading…
↗
22
61AW007030
Graphic Set
Loading…
↗
23
61A4268130
Mark, Cowling
Loading…
↗
24
61A4268230
Mark, Cowling
Loading…
↗
