E75BMHD (2025)
TOP COWLING

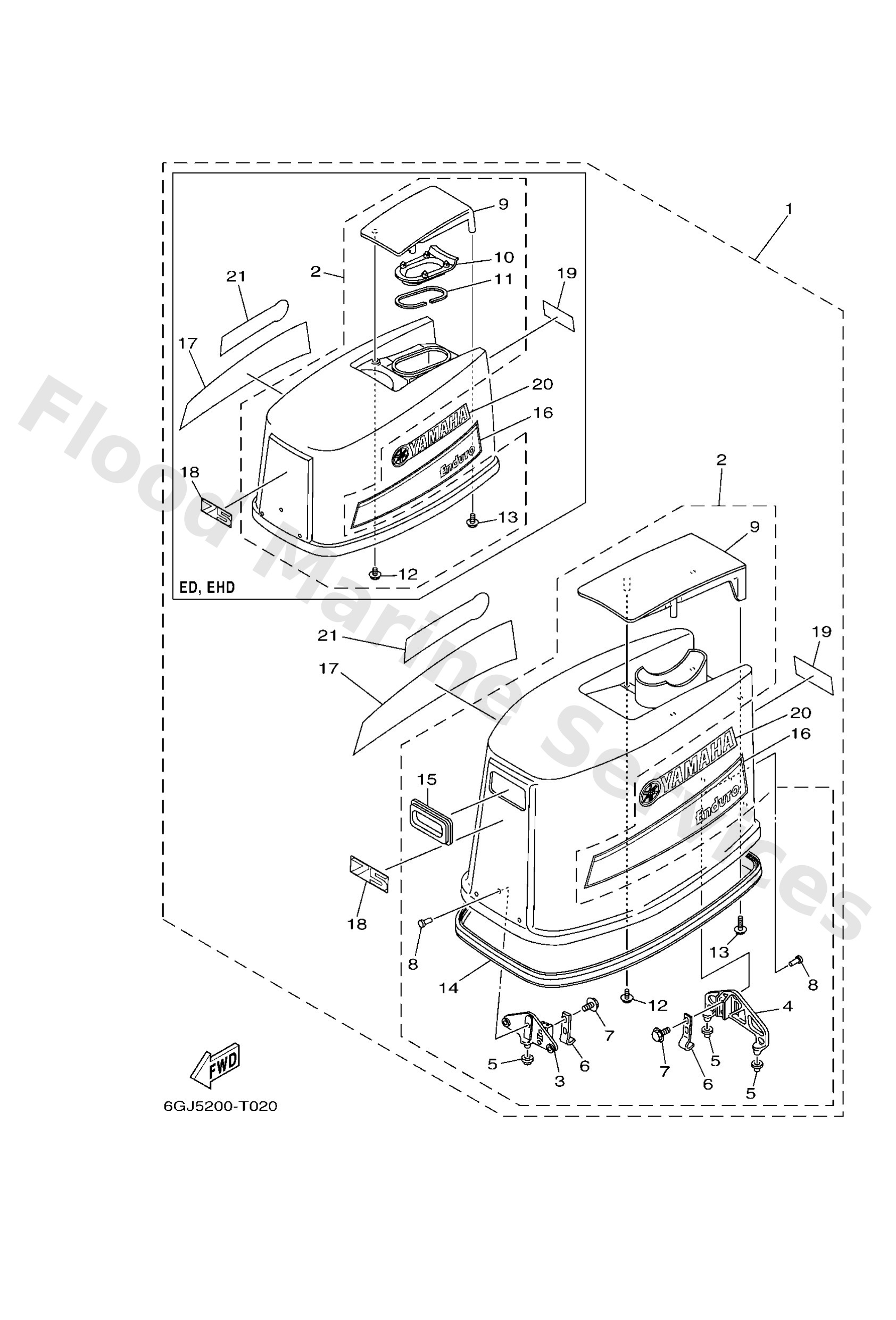

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6924261074
Top Cowling assembly
Loading…
↗
1
69242610N2
Top cowling assembly
Loading…
↗
2
6924261A02
Top cowling w/o graphics
Loading…
↗
2
6884261A12
Top cowling w/o graphics
Loading…
↗
3
6884264700
Holder, clamp band
Loading…
↗
4
6924264900
Holder, clamp band
Loading…
↗
4
6884264900
Holder, clamp band
Loading…
↗
5
6634266201
Damper
Loading…
↗
6
6884265210
Hook 2
Loading…
↗
7
97E9506618
Bolt, hexagon w/w deep recess
Loading…
↗
8
9026606009
Rivet (697)
Loading…
↗
9
69242613018D
Molding, air duct
Loading…
↗
9
68842613018D
Molding, air duct
Loading…
↗
10
6884261800
Air shroud, top cowling
Loading…
↗
11
6884262800
Seal 1
Loading…
↗
12
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
13
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
13
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
14
6884261501
Seal
Loading…
↗
15
6971576101
Seal 1
Loading…
↗
16
6924267551
Graphic, side 1
Loading…
↗
17
6924267651
Graphic, side 2
Loading…
↗
18
6924267851
Graphic, rear
Loading…
↗
20
6884268171
Mark, cowling
Loading…
↗
