F350SA2 (2024)
TOP COWLING

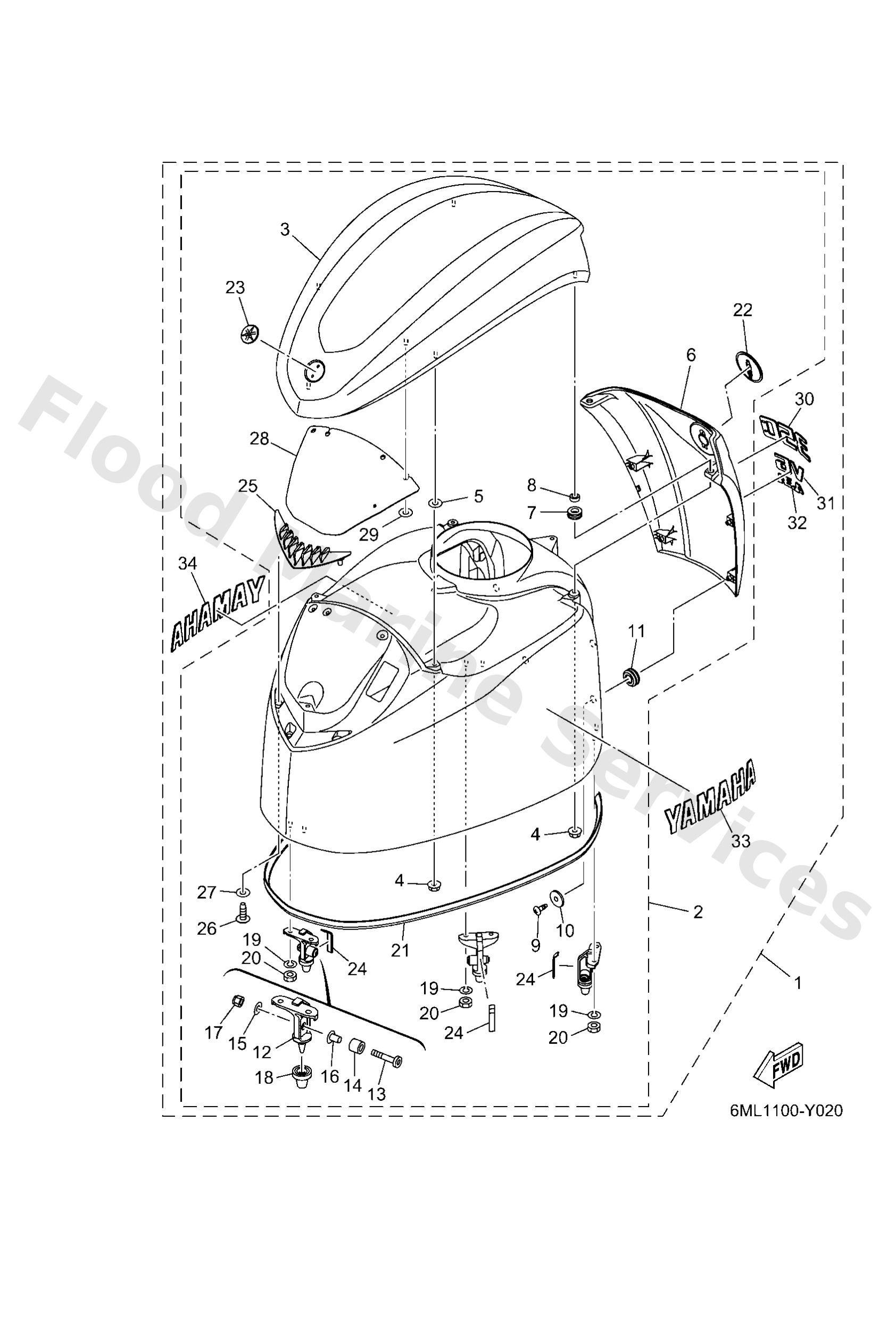

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
6ML4261000CE
WHITE
Top cowling assembly
Loading…
↗
1
6ML42610008D
GRAY
Top cowling assembly
Loading…
↗
2
6ML4261A00CE
WHITE
Top cowling w/o graphics
Loading…
↗
2
6ML4261A008D
GRAY
Top cowling w/o graphics
Loading…
↗
3
6ML42613008D
GRAY
Molding, air duct
Loading…
↗
3
6ML4261300CE
WHITE
Molding, air duct
Loading…
↗
4
9017906M28
Nut(63v)
Loading…
↗
5
6CB4254500
Washer, plain
Loading…
↗
6
6KA4262500CE
WHITE
Panel, rear
Loading…
↗
6
6KA42625008D
GRAY
Panel, rear
Loading…
↗
7
9048013004
Grommet
Loading…
↗
8
9038707054
Collar
Loading…
↗
9
9778050016
Screw, tapping(4ky)
Loading…
↗
10
90201053R1
Washer, plate
Loading…
↗
11
9048016009
Grommet
Loading…
↗
12
6CB42647A0
Holder, clamp band
Loading…
↗
13
9011108078
Bolt,hex. socket button
Loading…
↗
14
9038710094
Collar
Loading…
↗
15
9299008600
Washer, plain (663)
Loading…
↗
16
9038708M45
Coller (6f5)
Loading…
↗
17
9578008300
Nut, nylon (6j8)
Loading…
↗
18
6AW4266301
Damper 2
Loading…
↗
19
9299006100
Washer(6a1)
Loading…
↗
20
9538006600
Nut(661)
Loading…
↗
21
6CB4262800
Seal
Loading…
↗
22
6KN4269700
Tuning fork mark
Loading…
↗
23
6LB4269700
Tuning fork mark
Loading…
↗
24
6CB4213401
Cover
Loading…
↗
25
6ML4262600
Louver, 1
Loading…
↗
28
6ML2126600
Sheet 1
Loading…
↗
29
9018305M06
Nut, spring(6h4)
Loading…
↗
30
6ML4267800
Graphic, rear
Loading…
↗
31
6KA4267A00
Graphic, rear 2
Loading…
↗
32
6ML4268200
Mark, cowling
Loading…
↗
33
6KA2153A00
Emblem, yamaha
Loading…
↗
34
6KA2153B00
Emblem, yamaha
Loading…
↗
