Z250FETO (2007)
TOP COWLING

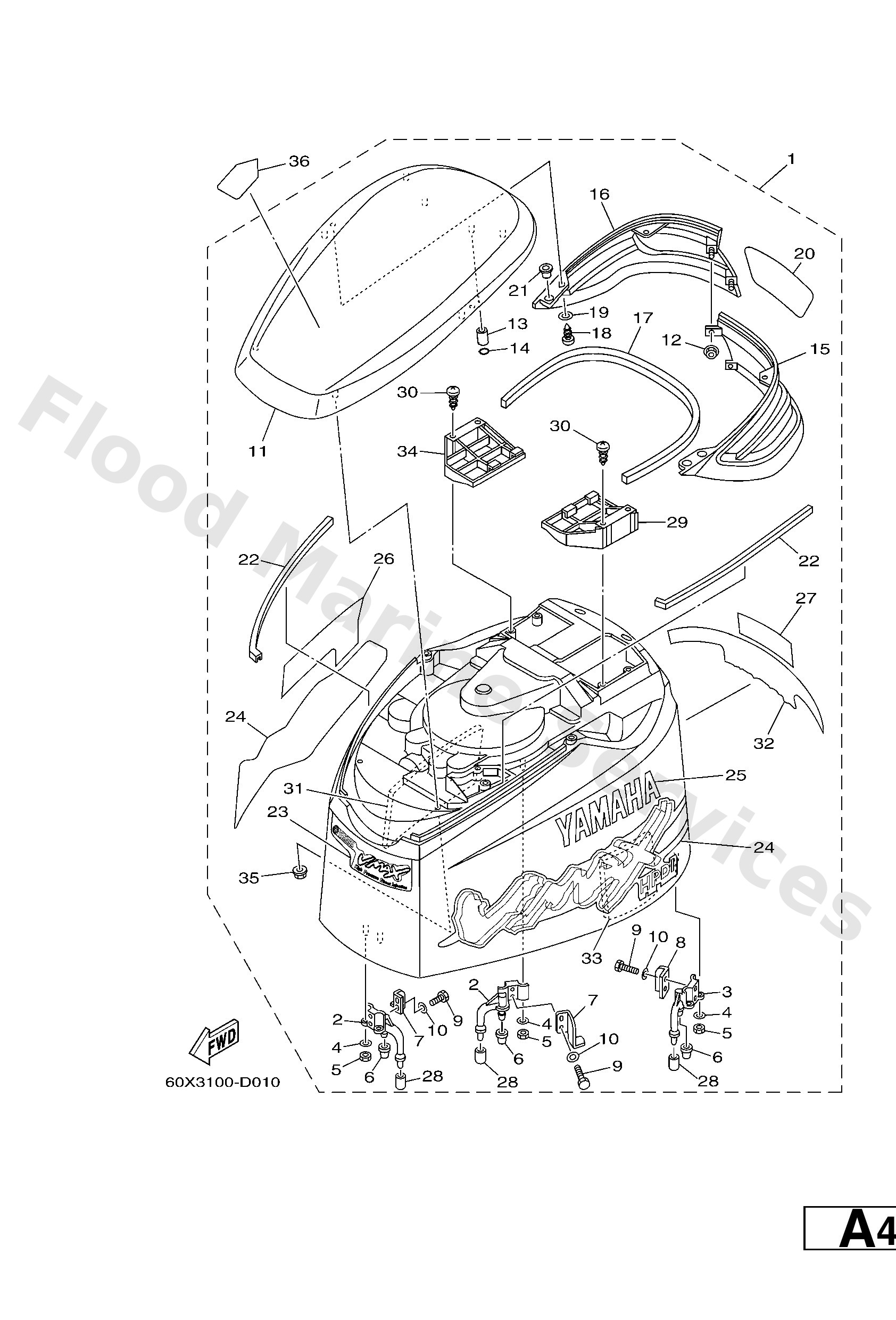

Diagram: TOP COWLING
Parts List
Reference
Description
Price
1
60X4261000NA
Top Cowling assembly
Loading…
↗
2
68F426470194
Holder, clamp band
Loading…
↗
3
68F426480194
Holder, clamp band
Loading…
↗
4
9299006100
Washer(6a1)
Loading…
↗
5
9538006600
Nut(661)
Loading…
↗
6
68F4266300
Damper 2
Loading…
↗
7
60V4265101
Hook
Loading…
↗
8
60V4265200
Hook
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
60X4261301NA
Molding, air duct
Loading…
↗
12
9017906M24
Nut(6j8)
Loading…
↗
13
9038706011
Collar
Loading…
↗
14
9321006270
O-ring
Loading…
↗
15
60X4263601NA
Louver 2
Loading…
↗
16
60X4263611NA
Louver 2
Loading…
↗
17
60X4266200
Damper
Loading…
↗
18
9778050616
Screw, pan head tapping (ak5)
Loading…
↗
19
9299005200
Ybs66-5 washer, plain
Loading…
↗
20
60X4268700
Emblem, Rear
Loading…
↗
21
9038706095
Collar
Loading…
↗
22
60V4266200
Damper
Loading…
↗
23
60Y4267700
Graphic, front
Loading…
↗
24
60XW007000
Graphic Set
Loading…
↗
25
60X4268100
Mark, Cowling
Loading…
↗
26
60X4268200
Mark, cowling
Loading…
↗
27
60X4267800
Graphic, front
Loading…
↗
28
67F1344800
Cap
Loading…
↗
29
60X4262600
Louver, 1
Loading…
↗
30
9778050620
Screw, tapping
Loading…
↗
31
60V4263700
Damper, Form
Loading…
↗
32
60X4267A00
Graphic, rear 2
Loading…
↗
33
60V4263710
Damper, Form
Loading…
↗
34
60X4262610
Louver, 1
Loading…
↗
36
68F1343400
Label, Caution
Loading…
↗
