55BED (2003)
UPPER CASING

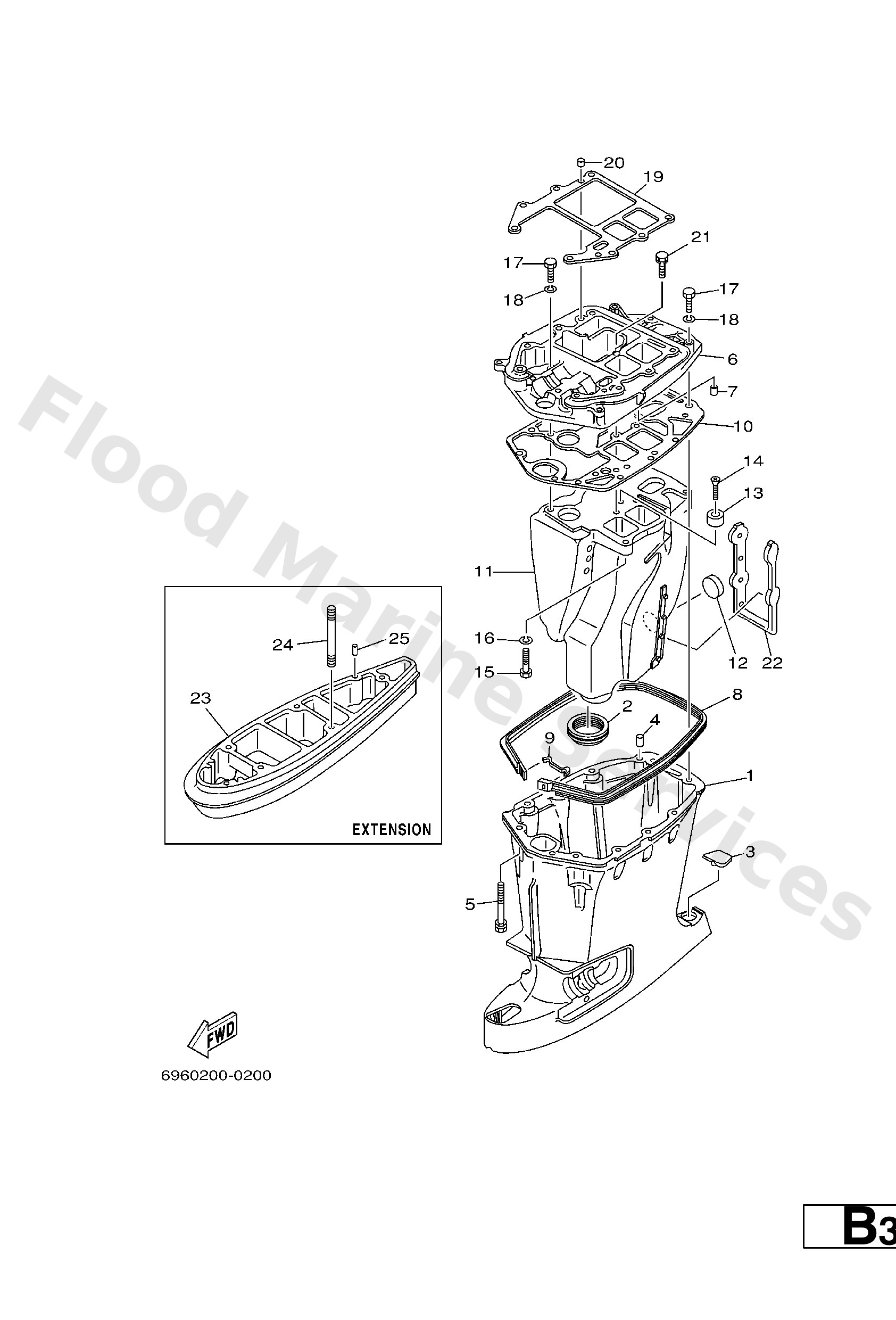

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
697−45111−01−4D
S
Casing, upper
Loading…
↗
1
691−45111−13−4D
L
Casing, upper
Loading…
↗
1
697−45111−13−4D
L
Casing, upper
Loading…
↗
1
691−45111−01−4D
S
Lower unit assembly
Loading…
↗
2
663−45123−00
Gasket, muffler
Loading…
↗
3
663−45155−10
Cap
Loading…
↗
4
93606−12019
Pin, dowel (614)
Loading…
↗
5
90119−08M82
Bolt, with washer(697)
Loading…
↗
6
663−41137−04−5B
Guide, exhaust
Loading…
↗
7
90386−02M04
Bushing (663)
Loading…
↗
8
663−45127−00
Seal 1
Loading…
↗
9
663−45129−00
Hook, damper seal
Loading…
↗
10
697−45114−A0
Gasket,upper casing 2
Loading…
↗
11
663−14711−02−5B
S
Muffler
Loading…
↗
11
663−14711−12−5B
L
Muffler
Loading…
↗
12
90334−30017
Plug strait(663)
Loading…
↗
13
663−45251−00
Anode
Loading…
↗
14
90152−06M01
Screw, countersunk
Loading…
↗
15
97075−08035
Bolt(70w)
Loading…
↗
16
92995−08100
Ybs67-8 washer, spring
Loading…
↗
17
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
19
696−45113−A0
Gasket,upper casing
Loading…
↗
21
97575−08440
Bolt, with washer
Loading…
↗
22
663−14737−00
S
Damper, muffler
Loading…
↗
22
663−14737−10
L
Damper, muffler
Loading…
↗
23
696−45211−01−4D
Extension
Loading…
↗
24
90116−10M31
Bolt, stud(6a3)
Loading…
↗
