Z250FETO (2007)
UPPER CASING

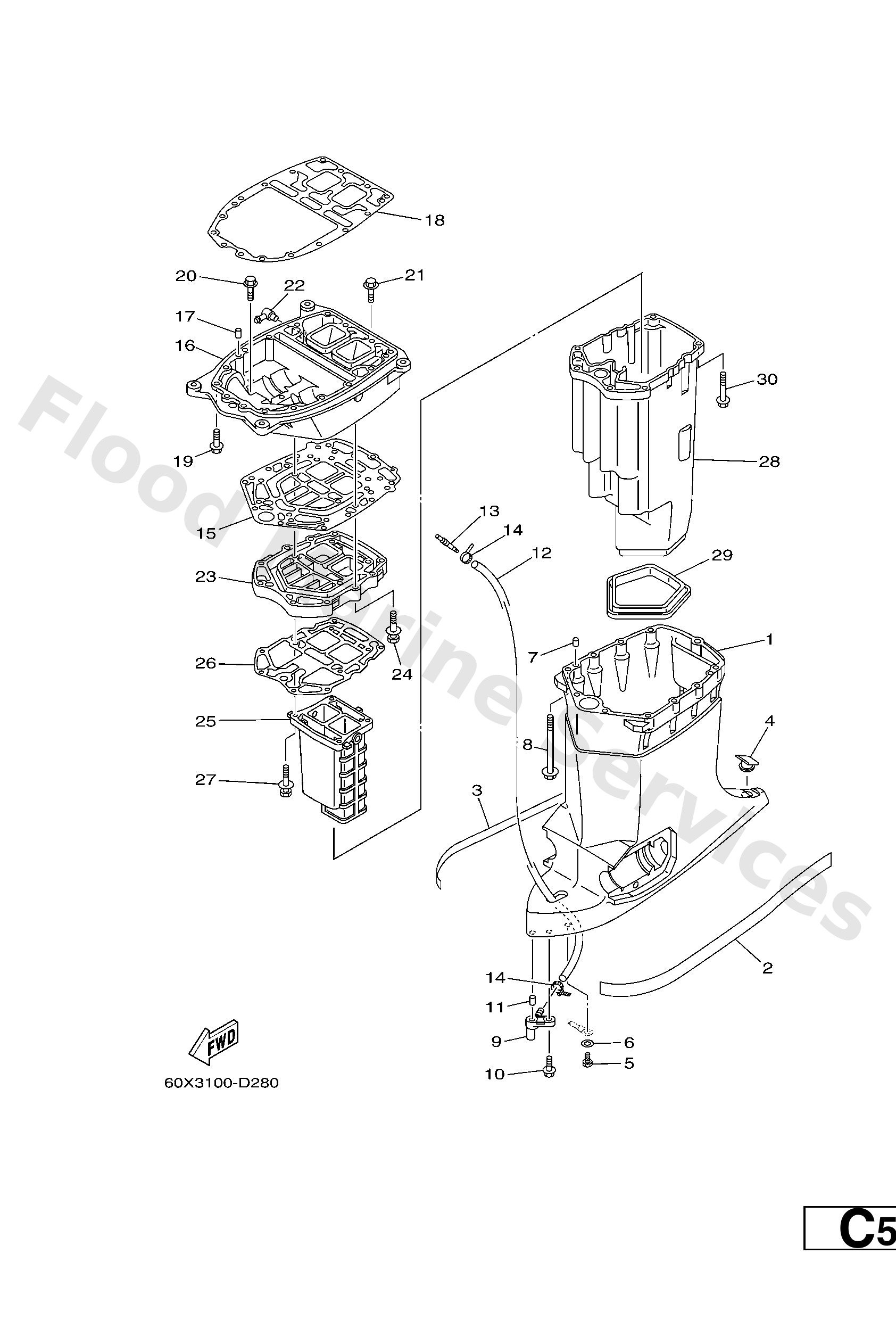

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
60X45111018D
Casing, upper
Loading…
↗
2
6N94279140
Mark 1
Loading…
↗
3
6N94279240
Mark 2
Loading…
↗
4
61A4515500
Cap
Loading…
↗
5
9709506010
Bolt
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9360812M05
Pin, dowel b (6e5)
Loading…
↗
8
9011908052
Bolt, with washer
Loading…
↗
9
66K4537800
Nipple, hose
Loading…
↗
10
9011906M17
Bolt, with washer
Loading…
↗
11
9360612019
Pin, dowel (614)
Loading…
↗
12
9044507MF0
Hose (l1160)
Loading…
↗
13
6E58355800
End, nipple
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
60V4511400
Gasket, upper casing
Loading…
↗
16
60V411372094
Guide, exhaust
Loading…
↗
18
60V4511301
Gasket, upper casing
Loading…
↗
19
9011908079
Bolt, with washer
Loading…
↗
20
9011908072
Bolt, With Washer
Loading…
↗
21
9011908060
Bolt, with washer
Loading…
↗
22
6H11137200
Nipple, hose
Loading…
↗
23
60V41131045B
Manifold, ext. 1
Loading…
↗
24
9011908056
Bolt, With Washer
Loading…
↗
25
6D041132005B
Manifold, exhaust
Loading…
↗
26
6D04113400
Gasket, exhaust manifold
Loading…
↗
27
9011908059
Bolt, with washer
Loading…
↗
28
60X14711005B
Muffler 1
Loading…
↗
29
60X4512300
Gasket, muffler
Loading…
↗
