25QEO (1990)
Alternate 1

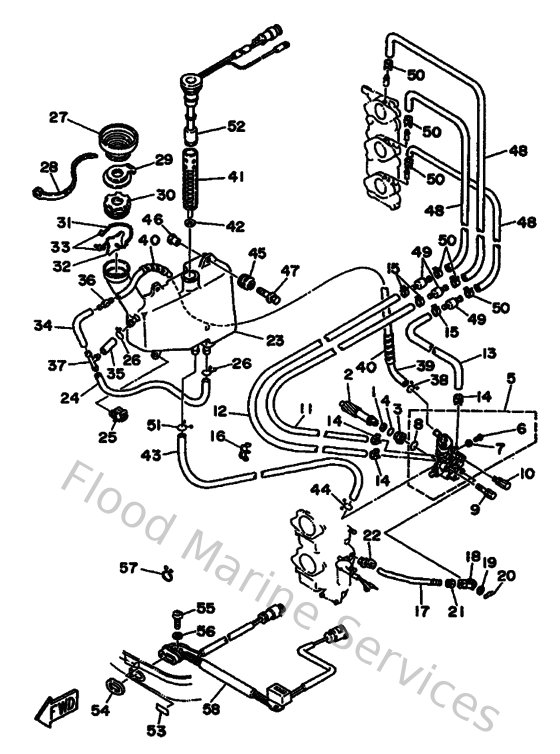

Diagram: Alternate 1
Parts List
Reference
Description
Price
1
9020108M9300
Washer, plate (6g5)
Loading…
↗
2
6H4115370000
Gear, driven
Loading…
↗
3
6H1131170000
Collar, distance
Loading…
↗
4
932101359500
93210-13m04
Loading…
↗
6
6H1134710000
Plug, Drain
Loading…
↗
7
6L2134750000
Gasket, breather bolt
Loading…
↗
8
9321019M8200
O-ring(6j8)
Loading…
↗
9
9010906M3900
Bolt(6h0)
Loading…
↗
10
9010906M4000
Bolt(6h0)
Loading…
↗
11
9044507M4400
Hose (l390)
Loading…
↗
12
9044507M2300
Hose (l570)
Loading…
↗
13
9044507MA600
Hose (l200)
Loading…
↗
14
9046807M0200
Clip (6e5)
Loading…
↗
16
9046407M2000
Clamp(6h0)
Loading…
↗
17
6H4412410100
Rod, link
Loading…
↗
18
6H1412370000
Joint, link
Loading…
↗
19
902020508800
Washer, plate (666)
Loading…
↗
20
9046805M0300
Clip(6j8)
Loading…
↗
21
953800560000
Nut, hexagon (663)
Loading…
↗
22
6R5412370000
Joint, link
Loading…
↗
23
6H4217070400
Oil Tank Comp
Loading…
↗
24
9044511M1700
Hose (l360)
Loading…
↗
25
9046411M2300
Clamp(6h4)
Loading…
↗
26
9046711M0800
Clip(72x)
Loading…
↗
27
6H4217520000
Tube, filler 1
Loading…
↗
28
9046513M3000
Clamp
Loading…
↗
29
6H12176M0100
Hook
Loading…
↗
30
6H4217700000
Oil tank cap assembly
Loading…
↗
32
6J8217580000
Washer, special 2
Loading…
↗
33
6H1217570000
Washer, special 1
Loading…
↗
34
9044511M2300
Hose (l100)
Loading…
↗
35
9044511M0700
Hose (l70)
Loading…
↗
36
6J8217440000
Breather
Loading…
↗
37
6E5243780000
Pipe, joint 3
Loading…
↗
38
9046710M0400
Clip, pipe 1 (6e9)
Loading…
↗
40
9044610M0100
Tube (6e5)
Loading…
↗
41
6J8134110000
Strainer, oil
Loading…
↗
42
6J8134140000
Gasket, strainer cover
Loading…
↗
43
6L2134160000
Pipe, oil 1
Loading…
↗
44
904670800400
Clip, pipe 6162435600
Loading…
↗
45
6A0823170000
Damper, ignition coil
Loading…
↗
46
624425420000
Collar
Loading…
↗
47
9011906M6500
Bolt, with washer
Loading…
↗
48
9044507M8700
Hose(62t)
Loading…
↗
49
6J8131830000
Valve check
Loading…
↗
52
6H4857203000
Oil Level Gauge
Loading…
↗
54
6H4835890000
Gasket
Loading…
↗
55
925030601500
Screw, pan
Loading…
↗
56
929900660000
Washer, plain (646)
Loading…
↗
57
904651814700
Clamp
Loading…
↗
58
6H4843010100
Pilot Light Assembly 1
