Yamaha Outboard Parts - Alternate 1 - 50DEMTO (1993) | Flood Marine

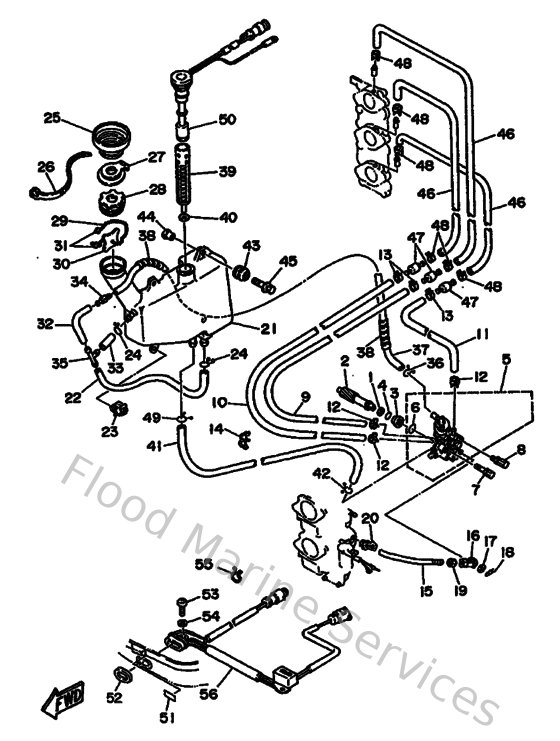

Diagram: Alternate 1

Diagram

Parts List

Reference
Description
Price


1
9020108M9300
Washer, plate (6g5)
Loading…

↗
2
6H4115370100
Gear, driven
Loading…

↗
3
6H1131170100
Collar, distance
Loading…

↗
4
932101359500
93210-13m04
Loading…

↗
6
9321019MA700
O-ring(6r0)
Loading…

↗
7
9010906M3900
Bolt(6h0)
Loading…

↗
8
9010906M4000
Bolt(6h0)
Loading…

↗
9
9044507M4400
Hose (l390)
Loading…

↗
11
9044507MA600
Hose (l200)
Loading…

↗
12
9046807M0200
Clip (6e5)
Loading…

↗
46
9044507M8700
Hose(62t)
Loading…

↗
47
6E9131837000
Valve check
Loading…

↗
49
9046711M0800
Clip(72x)
Loading…

↗
52
6H4835890000
Gasket
Loading…

↗
53
925030601500
Screw, pan
Loading…

↗
54
929900660000
Washer, plain (646)
Loading…

↗
55
904651814700
Clamp
Loading…

↗
56
6H4843010100
Pilot Light Assembly 1
Loading…

↗
