Yamaha Outboard Parts - Alternate 2 - 4ACMH (1992) | Flood Marine

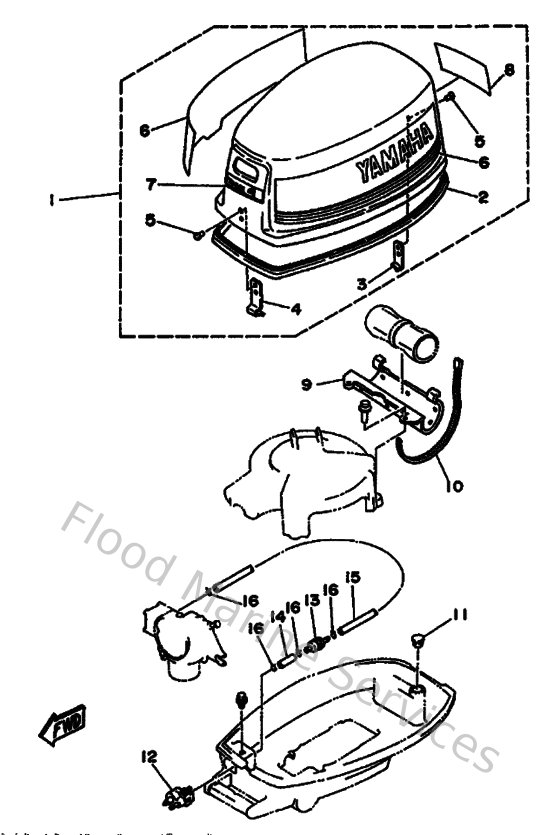

Diagram: Alternate 2

Diagram

Parts List

Reference
Description
Price


2
6E0426150000
Seal
Loading…

↗
3
6E0426470100
Holder, clamp band
Loading…

↗
4
6E0426510200
Hook
Loading…

↗
5
9026604M0000
Rivet 2 (662)
Loading…

↗
10
6E1426940000
Band
Loading…

↗
11
6E1241820000
Damper, Locating 2
Loading…

↗
12
6G1243041000
Fuel pipe joint comp. 1
Loading…

↗
13
646242510200
Strainer 1
Loading…

↗
15
688243130000
Pipe, fuel 2
Loading…

↗
16
904670800400
Clip, pipe 6162435600
Loading…

↗
