4ACMH (1993)
Alternate 2

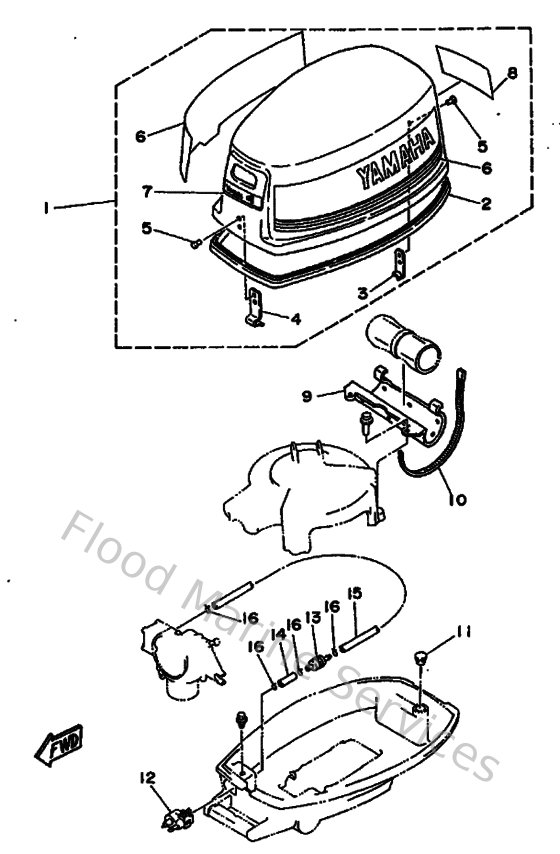

Diagram: Alternate 2
Parts List
Reference
Description
Price
2
6E0426150000
Seal
Loading…
↗
3
6E0426470100
Holder, clamp band
Loading…
↗
4
6E0426510200
Hook
Loading…
↗
5
9026604M0000
Rivet 2 (662)
Loading…
↗
9
6E1426430100
Plate, Clamp
Loading…
↗
10
904641411700
Clamp(mf1)
Loading…
↗
11
6E1241820000
Damper, Locating 2
Loading…
↗
12
6G1243041000
Fuel pipe joint comp. 1
Loading…
↗
13
646242510200
Strainer 1
Loading…
↗
14
904450905700
Hose (l180)
Loading…
↗
15
688243130000
Pipe, fuel 2
Loading…
↗
16
904670800400
Clip, pipe 6162435600
Loading…
↗
