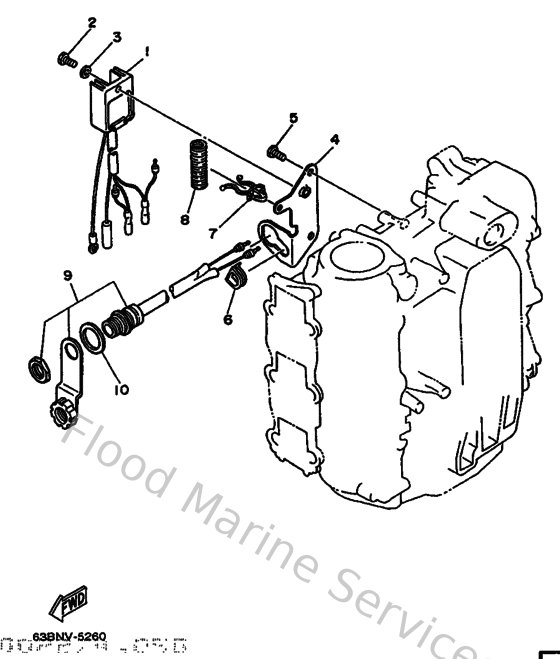

Diagram: Alternate 2 For Chassis

Diagram

Parts List

Reference
Description
Price


1
6J8819600000
Rectifier & regulator assembly
Loading…

↗
2
970950601200
Bolt(gh1)
Loading…

↗
3
929900660000
Washer, plain (646)
Loading…

↗
4
6H4819750200
Plate, rectifier fitting
Loading…

↗
5
970800601200
Bolt(gh1)
Loading…

↗
6
6F5819220000
Grommet 1
Loading…

↗
7
9046412M3500
Clamp(6h4)
Loading…

↗
8
9044014M0000
Pipe(6h4)
Loading…

↗
9
682843810000
2p concent 1
Loading…

↗
10
9020226M4500
Washer, plate(6h4)
Loading…

↗
