Yamaha Outboard Parts - Alternate 3 - 50DEMTO (1988) | Flood Marine
New Search
Parts
New Outboards
Home
50DEMTO (1988)
Alternate 3

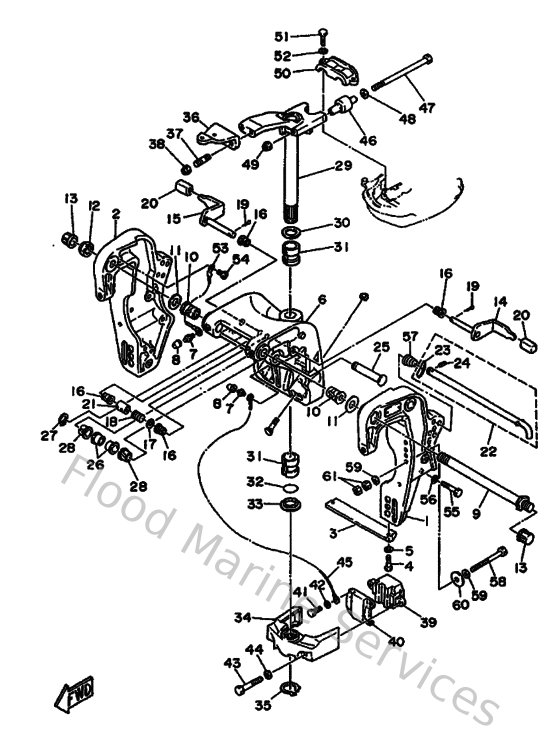

Diagram: Alternate 3
Parts List
Reference
Description
Price
2
6974311203EJ
Bracket, Clamp
Loading…
↗
3
6H1452510000
Anode set
Loading…
↗
4
973950603000
Bolt(jf7)
Loading…
↗
5
929950610000
Washer(6a1)
Loading…
↗
7
937000600400
Nipple, grease(6a1)
Loading…
↗
8
663451190000
Cap, grease nipple
Loading…
↗
9
688431310300
Bolt, clamp bracket
Loading…
↗
10
9038622M1500
Bushing (688)
Loading…
↗
11
9020122M6700
Washer, plate (688)
Loading…
↗
12
901852204300
Nut, self-locking
Loading…
↗
13
663431450000
Cap, clamp bracket
Loading…
↗
14
688431810300
Lever, tilt stop 1
Loading…
↗
15
688431850400
Lever, tilt stop 2
Loading…
↗
16
9038610M1600
Bushing (688)
Loading…
↗
17
929901060000
Washer, plate
Loading…
↗
18
9050110M2100
Spring (688)
Loading…
↗
19
914903003000
Pin, cotter
Loading…
↗
20
663433180000
Cover
Loading…
↗
21
9038710M3800
Coller (6e5)
Loading…
↗
22
697431600000
Tilt lock ass'y
Loading…
↗
23
688431650000
Stopper, tilt rod
Loading…
↗
24
916903001200
Pin, spring
Loading…
↗
25
6E5431260100
Pin, upper shock mount
Loading…
↗
26
9038618M6300
Bush(6e5)
Loading…
↗
27
9341018M0200
Circlip (6f2)
Loading…
↗
28
9038618M3500
Bush (688)
Loading…
↗
29
6H44251009EJ
Steering Bracket assembly
Loading…
↗
30
9020130M0000
Washer, plate(6h1)
Loading…
↗
31
903863004800
Bush
Loading…
↗
32
932102937500
O-ring (j10)
Loading…
↗
33
9038630M6000
Bush(6j8)
Loading…
↗
35
9341028M0600
Circlip (688)
Loading…
↗
37
901161017500
Bolt, stud
Loading…
↗
38
901851002700
Nut, self-locking
Loading…
↗
39
6H4445570000
Mount, lower front
Loading…
↗
40
6H4445530100
Cover, lower mount
Loading…
↗
41
970950802500
Bolt (62g)
Loading…
↗
42
929900860000
Washer, plain (663)
Loading…
↗
43
973951006000
Bolt, hexagon
Loading…
↗
45
6H5821170000
Wire, Lead
Loading…
↗
46
6H4445140000
Mount, upper side
Loading…
↗
47
9010108M8600
Bolt (6h4)
Loading…
↗
48
902010942500
Washer, plate (663)
Loading…
↗
49
901850801800
Nut, self-locking
Loading…
↗
50
6H4445110094
Cover, Upper Mount
Loading…
↗
51
970950803500
Bolt(70w)
Loading…
↗
52
929900810000
Ybs67-8 washer, spring
Loading…
↗
53
6E5821480000
Wire, lead 5
Loading…
↗
54
925800601200
Screw, pan head(62j)
Loading…
↗
55
970951004500
Bolt(64d)
Loading…
↗
56
929901010000
Ybs67-10 washer, spring
Loading…
↗
57
9050220M0300
Spring (6e5)
Loading…
↗
58
9010112M6500
Bolt
Loading…
↗
59
929951220000
Ybs66-12 washer,plain
Loading…
↗
60
902011242600
Washe, plate(663)
Loading…
↗
61
953801260000
Nut (707)
Loading…
↗
