Yamaha Outboard Parts - Alternate 7 - 40HM (1988) | Flood Marine

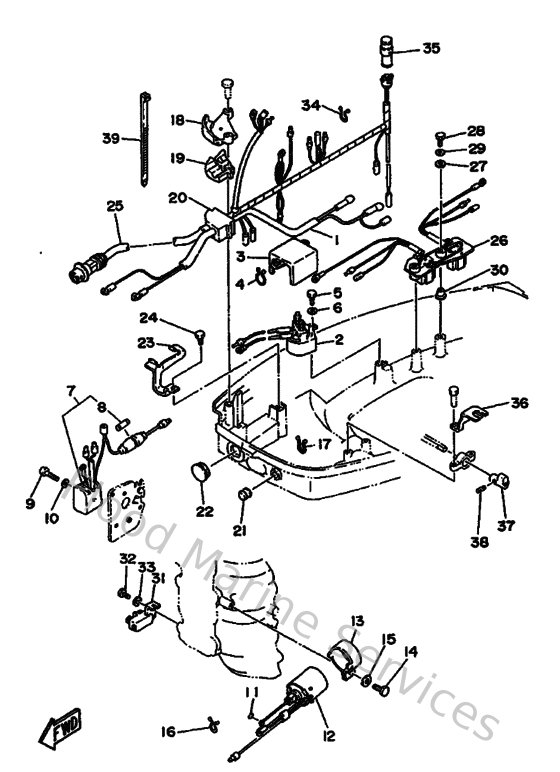

Diagram: Alternate 7

Diagram

Parts List

Reference
Description
Price


1
6H4821050000
Battery cable
Loading…

↗
2
688819501000
Relay assembly
Loading…

↗
3
6H3821640000
Case 2
Loading…

↗
4
904641603900
Clamp (3y2)
Loading…

↗
5
970950601600
Bolt, hexagon deep recess
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6G1819706000
Rectifier assembly
Loading…

↗
8
1E6821510000
Fuse (10a)
Loading…

↗
10
929900560000
Washer, plain (646)
Loading…

↗
11
932100326100
O-ring (663)
Loading…

↗
13
6H4861120000
Stay, Solenoid
Loading…

↗
16
904651814700
Clamp
Loading…

↗
18
6H4485311094
Bracket, remote control 1
Loading…

↗
19
6H4485321194
Bracket, remote control 2
Loading…

↗
20
6H4427242000
Grommet
Loading…

↗
21
6H4427250000
Grommet 2
Loading…

↗
22
676427260000
Grommet 3
Loading…

↗
23
6H4825880000
Plate
Loading…

↗
24
970800601200
Bolt(gh1)
Loading…

↗
25
6H4825902100
Wire Harness Assembly
Loading…

↗
26
6H5819501000
Relay Assembly
Loading…

↗
27
929900620000
Ybs66-6 washer, plain
Loading…

↗
28
973130602500
Bolt
Loading…

↗
30
9038706M0500
Collar(6h4)
Loading…

↗
31
6H5819200000
Terminal assembly
Loading…

↗
32
970130601200
Bolt(gh1)
Loading…

↗
36
6H4825540000
Stay, Neutral Switch
Loading…

↗
37
6H4441730100
Lever Shift Control
Loading…

↗
38
916903002000
Pin, spring (6h4)
Loading…

↗
39
437839361000
Band, switch cord
Loading…

↗
