Yamaha Outboard Parts - Alternate 9 - 50DEMTO (1993) | Flood Marine

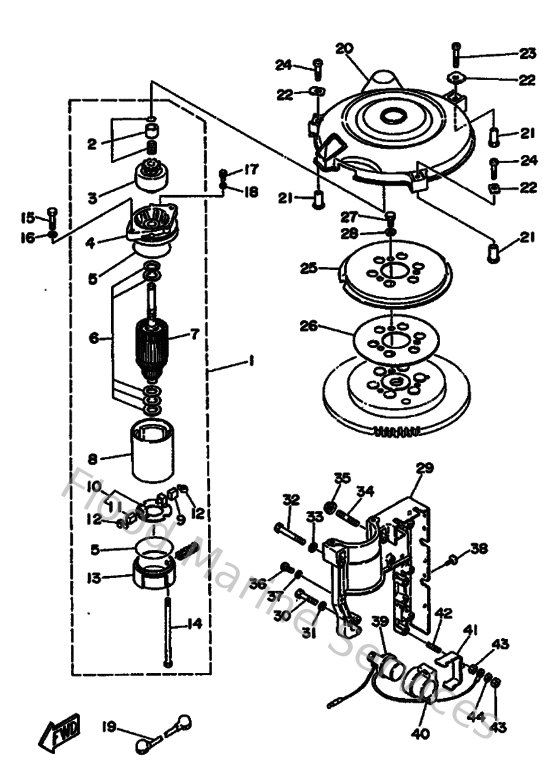

Diagram: Alternate 9

Diagram

Parts List

Reference
Description
Price


1
6F5818001100
Starting motor assembly
Loading…

↗
2
689818571100
Pinion stopper set
Loading…

↗
3
689818071200
Pinion assembly
Loading…

↗
4
6F5818301100
Front cover assembly
Loading…

↗
5
689818471100
O-ring
Loading…

↗
6
689818091100
Washer kit
Loading…

↗
7
689818501200
Armature assembly
Loading…

↗
8
689818101100
Stator ass'y
Loading…

↗
9
689818111100
Brush 1
Loading…

↗
10
689818401100
Brush holder assembly
Loading…

↗
11
689818121100
Brush 2
Loading…

↗
12
689818131000
Spring, brush
Loading…

↗
13
689818201100
Rear cover ass'y
Loading…

↗
14
689818261000
Bolt
Loading…

↗
15
973130803000
Bolt
Loading…

↗
16
929900860000
Washer, plain (663)
Loading…

↗
17
970130801600
Bolt, hexagon
Loading…

↗
19
6H4821170000
Wire, lead
Loading…

↗
20
6H4813370100
Cover, flywheel
Loading…

↗
21
9038706M6500
Collar (6h4)
Loading…

↗
22
9020906M0400
Washer
Loading…

↗
23
985800604000
Screw pan head
Loading…

↗
24
925800603500
Screw, pan head(6h4)
Loading…

↗
26
6J881365A000
Gasket, hole cover
Loading…

↗
27
970210801400
Bolt, hexagon
Loading…

↗
29
6H4818220298
Bracket, starting motor
Loading…

↗
30
973130603000
Bolt
Loading…

↗
31
929900660000
Washer, plain (646)
Loading…

↗
32
973130805000
Bolt, hexagon
Loading…

↗
34
956700664000
Bolt, stud(6h4)
Loading…

↗
35
9017906M2400
Nut(6j8)
Loading…

↗
36
973950601400
Bolt(gj3)
Loading…

↗
38
9033805M1200
Plug(6h4)
Loading…

↗
39
6G1819411000
Starter relay
Loading…

↗
40
6H4819520000
Holder, relay
Loading…

↗
41
6H4819450000
Plate, switch fitting
Loading…

↗
42
9011606M2200
Bolt, stud (6h1)
Loading…

↗
43
953800660000
Nut(661)
Loading…

↗
