E55CMH (2003)
BRACKET 1

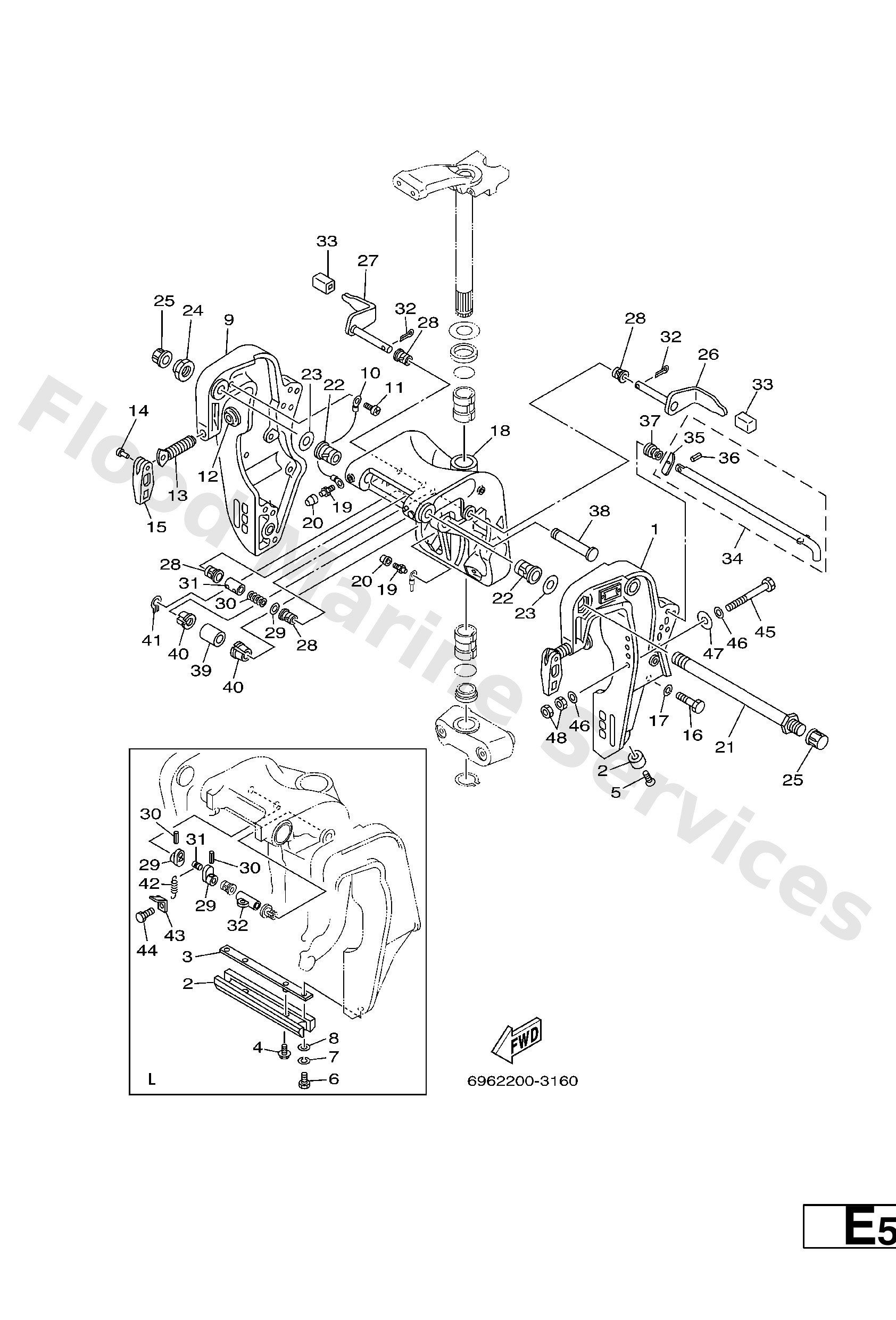

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
688−43111−13−4D
L
Bracket, clamp 1
Loading…
↗
1
697−43111−05−4D
S
Bracket, clamp
Loading…
↗
2
6H1−45251−03
L
Anode
Loading…
↗
2
663−45251−00
S
Anode
Loading…
↗
3
6H1−44526−00
L
Plate 2
Loading…
↗
4
90119−06M29
L
Bolt, with washer
Loading…
↗
5
90152−06M01
S
Screw, countersunk
Loading…
↗
6
97095−06016
L
Bolt, hexagon deep recess
Loading…
↗
7
92995−06100
L
Washer(6a1)
Loading…
↗
8
92995−06600
L
Washer, plain (646)
Loading…
↗
9
697−43112−03−4D
S
Bracket, clamp
Loading…
↗
9
688−43112−12−4D
L
Bracket, clamp 2
Loading…
↗
10
6E5−82148−00
Wire, lead 5
Loading…
↗
11
97880−06012
Screw, pan head(62j)
Loading…
↗
12
648−43114−01
Pad, transom clamp
Loading…
↗
13
663−43116−01
Screw, transom
Loading…
↗
14
90243−04007
Pin (663)
Loading…
↗
15
663−43118−01−4D
Handle, transom clamp
Loading…
↗
16
97095−10045
Bolt(64d)
Loading…
↗
17
92995−10100
Ybs67-10 washer, spring
Loading…
↗
18
697−43311−03−4D
S
Bracket, swivel
Loading…
↗
18
6H1−43311−01−4D
L
Bracket, swivel 1
Loading…
↗
19
93700−06M03
Nipple, grease(6a1)
Loading…
↗
20
663−45119−00
AP
Cap, grease nipple
Loading…
↗
21
688−43131−03
Bolt, clamp bracket
Loading…
↗
22
90386−22M15
Bushing (688)
Loading…
↗
23
90201−22M67
Washer, plate (688)
Loading…
↗
24
90185−22043
Nut, self-locking
Loading…
↗
25
6G5−43145−01
Cap, clamp bracket
Loading…
↗
26
688−43181−10
L
Lever, tilt stop 1
Loading…
↗
26
688−43181−04
S
Lever, tilt stop 1
Loading…
↗
27
688−43185−04
S
Lever, tilt stop 2
Loading…
↗
27
688−43185−10
L
Lever, tilt stop 2
Loading…
↗
28
90386−10M16
Bushing (688)
Loading…
↗
29
92990−10600
S
Washer, plate
Loading…
↗
29
6G5−43148−00
L
Collar, distance
Loading…
↗
30
90501−10M21
S
Spring (688)
Loading…
↗
30
91690−30020
L
Pin, spring (6h4)
Loading…
↗
31
90387−10M38
S
Coller (6e5)
Loading…
↗
31
90249−06M19
L
Pin(6e5)
Loading…
↗
32
91490−30025
S
Pin cotter
Loading…
↗
32
90387−10M02
L
Collar(6e5)
Loading…
↗
33
663−43318−00
Cover
Loading…
↗
34
697−43160−00
S
Tilt lock ass'y
Loading…
↗
34
688−43160−01
L
Tilt rod ass'y
Loading…
↗
35
688−43165−00
Stopper, tilt rod
Loading…
↗
36
91690−30012
Pin, spring
Loading…
↗
37
90502−20M03
S
Spring (6e5)
Loading…
↗
37
90502−16M02
L
Spring, conical (688)
Loading…
↗
38
6E5−43126−02
Pin, upper shock mount
Loading…
↗
39
90386−18M21
Bushing (688)
Loading…
↗
40
90386−18M35
Bush (688)
Loading…
↗
41
93410−18M02
Circlip (6f2)
Loading…
↗
42
90506−14M24
L
Spring, tension(6e5)
Loading…
↗
43
6G5−43144−00
L
Hook, spring
Loading…
↗
44
97095−06010
L
Bolt
Loading…
↗
45
90101−12M51
Bolt
Loading…
↗
46
92995−12200
Ybs66-12 washer,plain
Loading…
↗
47
90201−12426
Washe, plate(663)
Loading…
↗
48
95380−12600
Nut (707)
Loading…
↗
