F225CET (2009)
BRACKET 2

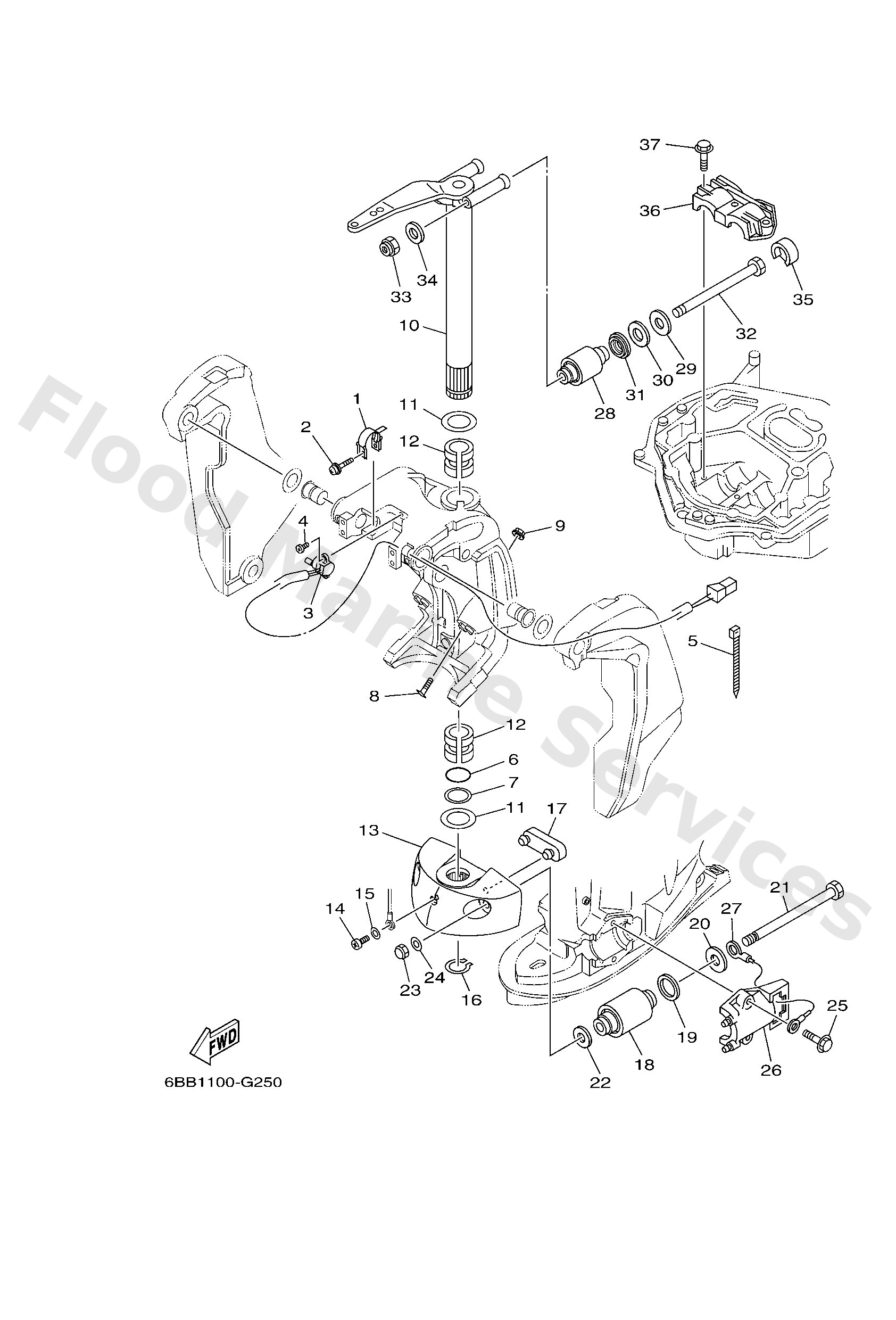

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
64E4313910
Cam, trim sender
Loading…
↗
2
9015905059
Screw, with washer
Loading…
↗
3
67H8367200
Trim sender
Loading…
↗
4
9788506016
Screw, pan head(6b0)
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
9321037MH7
O-ring(61u)
Loading…
↗
7
9020240M47
Washer, plate(61a)
Loading…
↗
8
64E4337600
Bolt, thrust receiver
Loading…
↗
9
9578010300
Nut, nylon (6e5)
Loading…
↗
10
66K42510028D
Steering bracket assembly
Loading…
↗
11
9020138M60
Washer, plate (6e5)
Loading…
↗
12
9038638M32
Bush(6e5)
Loading…
↗
13
6BB44551008D
Housing, Lower Mount Rubber
Loading…
↗
14
9788506012
Screw, pan head(62j)
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
9341037M04
Circlip (6e5)
Loading…
↗
17
6E54457500
Damper, lower mount rubber
Loading…
↗
18
60X445550094
Mount damper, lower side
Loading…
↗
19
9020232M19
Washer, plate (6e5)
Loading…
↗
20
9020116016
Washer, plate
Loading…
↗
21
9010914M80
Bolt
Loading…
↗
22
9020115M58
Washer, plate (6e5)
Loading…
↗
23
9538014800
Nut, crown (6e5)
Loading…
↗
24
9299514600
Washer (6e5)
Loading…
↗
25
9011910024
Bolt, with washer
Loading…
↗
26
61A4455201CA
Housing, lower mount rubber
Loading…
↗
27
6E58214900
Wire, lead 3
Loading…
↗
28
69J445140094
Mount damper, upper side
Loading…
↗
29
9020116015
Washer, plate
Loading…
↗
30
9020228M46
Washer, plate(61a)
Loading…
↗
31
69J4453200
Stopper, upper mount
Loading…
↗
32
9010114003
Bolt
Loading…
↗
33
9018514M00
Nut, self-locking(61a)
Loading…
↗
35
69J4453300
Damper, upper mount rubber
Loading…
↗
36
61A445110194
Cover, upper mount
Loading…
↗
