F45A (1997)
Bielette Carburateur

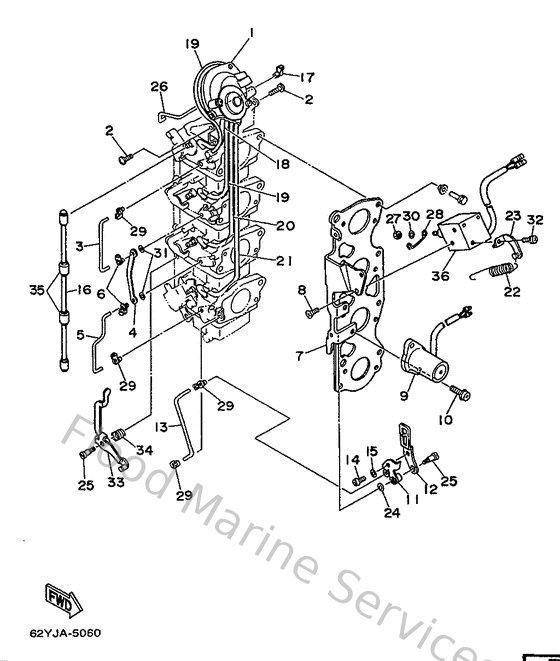

Diagram: Bielette Carburateur
Parts List
Reference
Description
Price
3
62Y145850000
Rod, Choke
Loading…
↗
4
62Y145851000
Rod, Choke
Loading…
↗
5
62Y145852000
Rod, Choke
Loading…
↗
6
6F5412620100
Joint, throttle lever
Loading…
↗
8
62Y145920000
Screw
Loading…
↗
9
62Y143800000
Prime starter assembly
Loading…
↗
10
62Y144290000
Screw
Loading…
↗
11
62Y141750000
Lever, Starter 1
Loading…
↗
13
62Y145853000
Rod, Choke
Loading…
↗
14
62Y145670000
Screw
Loading…
↗
16
62Y145854000
Rod, Choke
Loading…
↗
17
62Y412620000
Joint, choke lever
Loading…
↗
18
62Y143491000
Pipe
Loading…
↗
19
62Y143492000
Pipe
Loading…
↗
20
62Y143490000
Pipe
Loading…
↗
21
62Y143493000
Pipe
Loading…
↗
22
62Y144870100
Spring
Loading…
↗
25
62Y144291000
Screw
Loading…
↗
26
62Y145855000
Rod, Choke
Loading…
↗
27
62Y142580000
Nut, lock
Loading…
↗
28
62Y1212A0000
Wire, Plus Lead
Loading…
↗
30
62Y144751000
Washer
Loading…
↗
33
62Y143600000
Throttle Damper assembly
Loading…
↗
34
62Y145550000
Spring
Loading…
↗
35
62Y145780000
Collar
Loading…
↗
36
6E9861110100
Coil, solenoid
Loading…
↗
