P75TLH (1997)
Boitier Dhelice, Transmissio

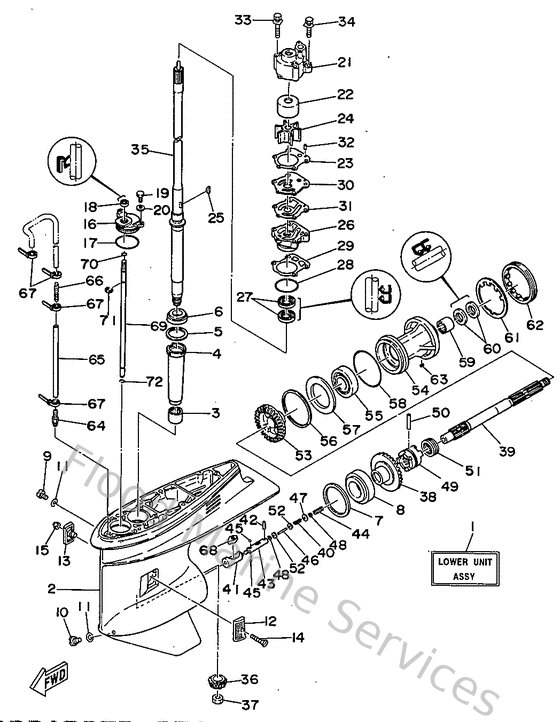

Diagram: Boitier Dhelice, Transmissio
Parts List
Reference
Description
Price
1
6H145300154D
Lower unit assembly
Loading…
↗
2
6H145301034D
Lower casing set
Loading…
↗
3
93315325V100
Bearing, needle (688)
Loading…
↗
4
688455360100
Sleeve, drive shaft
Loading…
↗
5
688455870130
Shim (t:0.30mm)
Loading…
↗
6
93332000U300
Brg,tapered roller 50mm (688)
Loading…
↗
7
688455676000
Shim (t:0.50mm)
Loading…
↗
8
93332000W700
Bearing(6b0)
Loading…
↗
9
903400800200
Plug, straight screw
Loading…
↗
10
688453410000
Plug, drain
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
6H1452140000
Cover, water inlet
Loading…
↗
13
6H1452150000
Cover, water inlet
Loading…
↗
14
9015105M0000
Screw, countersunk(692)
Loading…
↗
15
901850590400
Nut nylon (sus)(ex4)
Loading…
↗
16
688453210000
Plate
Loading…
↗
17
932104904600
O-ring (620)
Loading…
↗
18
931060901400
Oil seal
Loading…
↗
19
970950601600
Bolt, hexagon deep recess
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
688443110100
Housing, water pump 1
Loading…
↗
22
688443220000
Insert, cartridge
Loading…
↗
23
68844315A000
Gasket,water pump 1
Loading…
↗
24
688443520300
Impeller
Loading…
↗
25
9028004M0400
Key, woodruff (688)
Loading…
↗
26
688443410094
Housing, water pump set
Loading…
↗
27
9310125M0300
Oil seal
Loading…
↗
28
932104604400
O-ring
Loading…
↗
29
68844316A000
Gasket,water pump 2
Loading…
↗
30
688443230000
Outer plate, cartridge
Loading…
↗
31
68844324A000
Gasket,cartridge 0uter plate
Loading…
↗
32
9360410M0300
Pin, dowel (688)
Loading…
↗
33
9011908M1600
Bolt, with washer(6h0)
Loading…
↗
34
9011908M1300
Bolt, with washer(6h0)
Loading…
↗
35
6H1455011100
Drive shaft comp.
Loading…
↗
36
688455510100
Pinion
Loading…
↗
37
9017016M0100
Nut, hexagon (688)
Loading…
↗
38
688455600000
Gear 1 (26t)
Loading…
↗
39
6H1456110100
Shaft, propeller
Loading…
↗
40
9050112M4800
Spring (6h1)
Loading…
↗
41
6H1456410100
Shifter
Loading…
↗
42
9360312M1100
Pin, dowel(6h1)
Loading…
↗
43
6H1456340200
Slide, shift
Loading…
↗
44
9050116M6500
Spring, compression(6h1)
Loading…
↗
45
935031600300
Ball
Loading…
↗
46
6H1456680000
Shaft, free 1
Loading…
↗
47
902010331300
Washer, plate 8077743700
Loading…
↗
48
9018302M0300
Nut, spring (6h1)
Loading…
↗
49
6H1456310100
Clutch, dog
Loading…
↗
50
9025007M0200
Pin, straight (688)
Loading…
↗
51
688456330000
Ping, cross pin
Loading…
↗
52
6H1456350000
Plunger, shift
Loading…
↗
53
6H1455710000
Gear 2
Loading…
↗
54
688453310094
Housing, bearing
Loading…
↗
55
93306207U000
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
56
688455773000
Shim (t:0.18mm)
Loading…
↗
57
688455760000
Washer, thrust 2
Loading…
↗
58
9321085M9700
O-ring(6h1)
Loading…
↗
59
93317325U000
Brg,needle
Loading…
↗
61
688453830200
Washer, claw
Loading…
↗
62
688453840200
Nut
Loading…
↗
63
902820401000
Key, strait(663)
Loading…
↗
64
6E5453780000
Nipple, hose
Loading…
↗
65
9044507ME900
Hose (l250)
Loading…
↗
66
6E5835581000
End, nipple
Loading…
↗
67
904651009800
Clamp
Loading…
↗
68
6H1441510000
Cam, shift
Loading…
↗
69
6H1441440000
Rod, shift 2
Loading…
↗
70
932100754000
O-ring (11m)
Loading…
↗
71
990010860000
Circlip(2r6)
Loading…
↗
72
9345007M0000
Circlip (6e5)
Loading…
↗
1
663453760094
Guide, seal damper
Loading…
↗
2
688453750000
Damper, seal 2
Loading…
↗
3
688453710200
Tab-trim
Loading…
↗
4
9010510M0000
Bolt, hexagon (663)
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
970751004000
Bolt, hexagon deep recess
Loading…
↗
7
929901060000
Washer, plate
Loading…
↗
8
929901010000
Ybs67-10 washer, spring
Loading…
↗
9
9011908M8400
Bolt, with washer
Loading…
↗
10
688443611000
Tube, water 1
Loading…
↗
11
902021206000
Washer, plate(663)
Loading…
↗
12
904301207200
Gasket
Loading…
↗
13
663443670000
Damper, water seal 3
Loading…
↗
14
663443660000
Damper, water seal 2
Loading…
↗
15
9048019M0600
Grommet (688)
Loading…
↗
16
977804011200
Screw, pan head tapping
Loading…
↗
17
6E5835580000
End, nipple
Loading…
↗
18
9044507MF100
Hose (l570)
Loading…
↗
19
688459870100
Spacer
Loading…
↗
20
688459970100
Spacer 2
Loading…
↗
21
9020117M0000
Washer, plate(6h1)
Loading…
↗
22
901711601100
Nut, castle (663)
Loading…
↗
23
914904003000
Pin, cotter (663)
Loading…
↗
24
6E5459470000
Propeller (3x13-1/2x15-k)
Loading…
↗
25
6E5459721000
Propeller (ss 3x14"x24"-p)
Loading…
↗
26
6E5459941000
Plate, tooth
Loading…
↗
27
6E5453711000
Tab-trim
Loading…
↗
