15DWH (1985)
Bottom Cowling

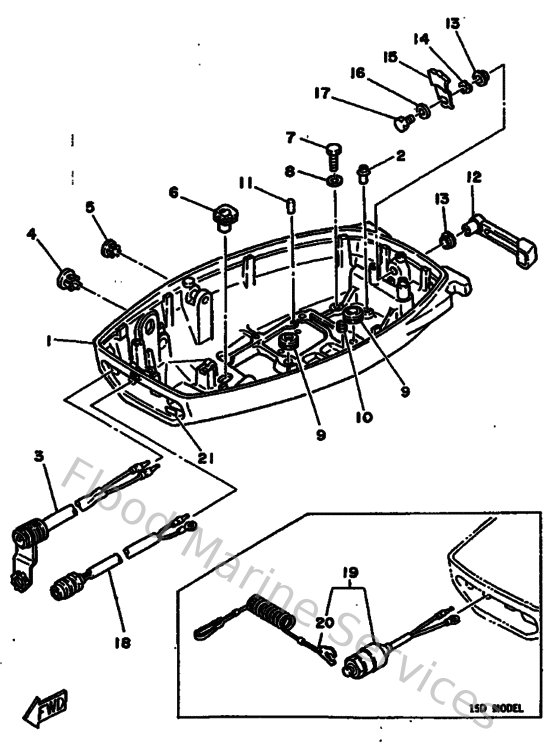

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
650243780000
Pipe, joint 2
Loading…
↗
3
682843810000
2p concent 1
Loading…
↗
4
682427250100
Grommet
Loading…
↗
5
682427260000
Grommet 3
Loading…
↗
6
682427270000
Grommet
Loading…
↗
9
682443670000
Rubber water seal 3
Loading…
↗
10
682443660000
Water seal 2
Loading…
↗
15
6E7428160000
Lever, clamp 2
Loading…
↗
18
6A0825500100
Stop switch assembly
Loading…
↗
19
6E9825750000
Engine stop switch assembly
Loading…
↗
20
682825560000
Lanyard, stop switch
Loading…
↗
21
6A1427920100
Mark (100:1)
Loading…
↗
