25BMH (2001)
Bottom Cowling

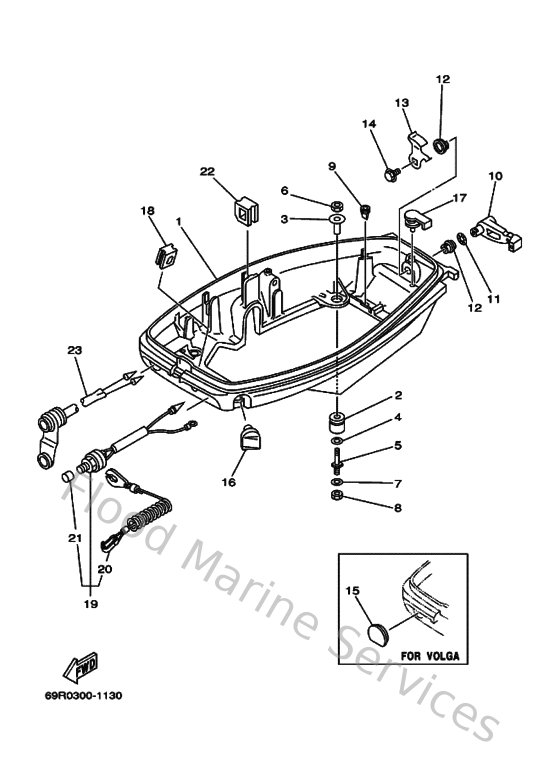

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
9048015M0600
Grommet (689)
Loading…
↗
3
9038708M2500
Collar (689)
Loading…
↗
4
9020108M8700
Washer (6g0)
Loading…
↗
5
6G0427960000
Bolt 1
Loading…
↗
6
953800870000
Nut(661)
Loading…
↗
7
929900860000
Washer, plain (663)
Loading…
↗
9
65W427170000
Rubber, seal 2
Loading…
↗
10
689428150000
Lever, clamp 1
Loading…
↗
11
902061205200
Washer, wave (666)
Loading…
↗
12
903861206900
Bush(666)
Loading…
↗
13
689428160000
Lever, clamp 2
Loading…
↗
14
9011906M7300
Bolt(gh1)
Loading…
↗
15
682427240000
Grommet
Loading…
↗
16
689427250100
Grommet
Loading…
↗
17
647425230000
Spacer, friction
Loading…
↗
18
61N263260000
Grommet
Loading…
↗
19
6E9825750200
Engine stop switch assembly
Loading…
↗
20
682825560000
Lanyard, stop switch
Loading…
↗
21
6898257Y0000
Cap
Loading…
↗
22
9048017M0800
Grommet (689)
Loading…
↗
23
682843810000
2p concent 1
Loading…
↗
