50HM (1996)
Bottom Cowling

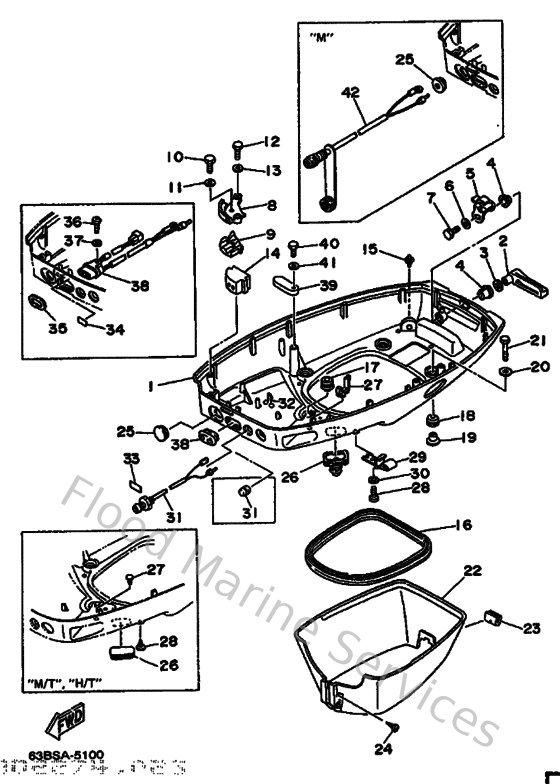

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6H442711074D
Cowling, bottom 1
Loading…
↗
2
6H4428150000
Lever, clamp 1
Loading…
↗
3
902061205200
Washer, wave (666)
Loading…
↗
4
903861206900
Bush(666)
Loading…
↗
5
6H4428160000
Lever, clamp 2
Loading…
↗
6
9020106M0200
Washer,plate (6k8)
Loading…
↗
7
973130601000
Bolt
Loading…
↗
8
6H4485311194
Bracket, remote control 1
Loading…
↗
9
6H4485321194
Bracket, remote control 2
Loading…
↗
10
970950501600
Bolt(6a1)
Loading…
↗
11
929900560000
Washer, plain (646)
Loading…
↗
12
970950602000
Bolt(7u8)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
6H4427242000
Grommet
Loading…
↗
15
6E5443910000
Nipple, hose
Loading…
↗
16
6H4427160000
Rubber seal 1
Loading…
↗
17
6E5427240000
Grommet
Loading…
↗
18
9048009M2100
Grommet (6e9)
Loading…
↗
19
9038706M4100
Coller (6e9)
Loading…
↗
20
902010641600
Washer, plate(663)
Loading…
↗
21
970800603000
Bolt(jf7)
Loading…
↗
22
63D42741004D
Apron
Loading…
↗
23
63D427170000
Rubber, seal 2
Loading…
↗
24
977806052500
Screw, tapping(65j)
Loading…
↗
25
6H4427264000
Grommet
Loading…
↗
26
688427261000
Grommet
Loading…
↗
27
9046415M0800
Clamp (6h1)
Loading…
↗
28
9015706M0100
Screw (6e5)
Loading…
↗
29
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
31
6H4427250000
Grommet 2
Loading…
↗
32
904651814700
Clamp
Loading…
↗
34
63D843420000
Seat, emblem
Loading…
↗
35
6H4835890000
Gasket
Loading…
↗
38
6H3427270000
Grommet
Loading…
↗
39
6E5825880000
Plate
Loading…
↗
