55BM (1992)
Bottom Cowling

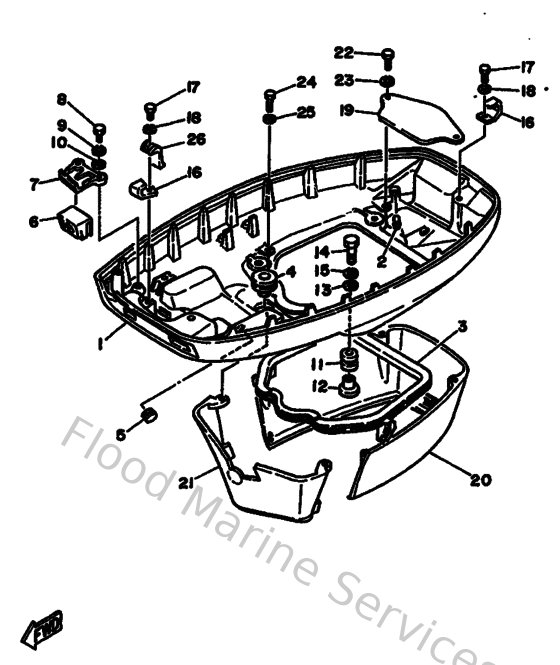

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
663243760000
Pipe, joint 1
Loading…
↗
3
663427160100
Sea 1
Loading…
↗
4
663427240000
Grommet
Loading…
↗
5
904801200400
Grommet(661)
Loading…
↗
7
663427380294
Plate, fitting
Loading…
↗
8
973950601600
Bolt, hexagon deep recess
Loading…
↗
9
929950610000
Washer(6a1)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
9048009M1200
Grommet (6a0)
Loading…
↗
12
9038706M0300
Collar (676)
Loading…
↗
13
902010641600
Washer, plate(663)
Loading…
↗
14
973130603000
Bolt
Loading…
↗
16
663427440200
Stay
Loading…
↗
17
973950601400
Bolt(gj3)
Loading…
↗
18
929900610000
Washer(6a1)
Loading…
↗
22
970800602000
Bolt(7u8)
Loading…
↗
24
973950602500
Bolt
Loading…
↗
26
663825940200
Clamp
Loading…
↗
