90AETOL (1996)
Bottom Cowling

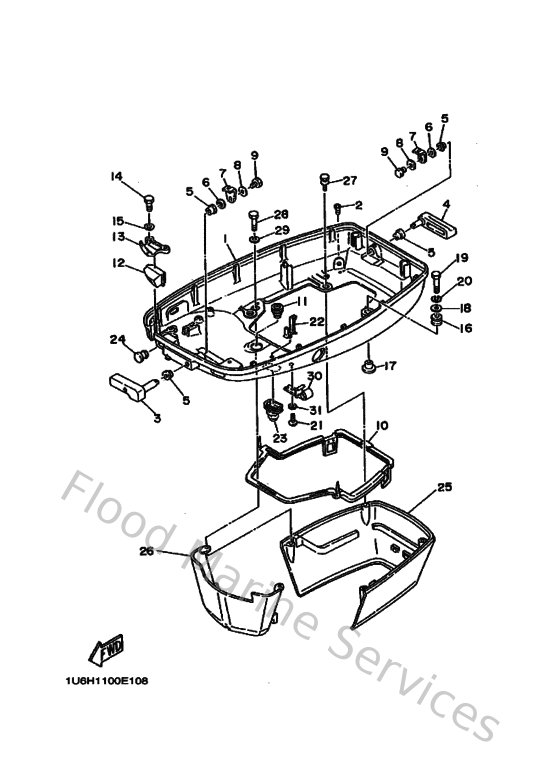

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6H142711014D
Cowling, bottom 1
Loading…
↗
2
6H3443910100
Nipple, hose
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
902061301900
Washer, wave 6264283200
Loading…
↗
7
688428160000
Lever, clamp 2
Loading…
↗
8
9020106M0200
Washer,plate (6k8)
Loading…
↗
9
970800601200
Bolt(gh1)
Loading…
↗
10
688427160200
Rubber seal 1
Loading…
↗
11
663427240000
Grommet
Loading…
↗
12
688427251000
Grommet
Loading…
↗
13
688427380194
Plate, fitting
Loading…
↗
14
970950601600
Bolt, hexagon deep recess
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
9048009M1200
Grommet (6a0)
Loading…
↗
17
9038706M6900
Collar (688)
Loading…
↗
18
902010641600
Washer, plate(663)
Loading…
↗
19
970950603000
Bolt(jf7)
Loading…
↗
20
929950610000
Washer(6a1)
Loading…
↗
21
9015706M0100
Screw (6e5)
Loading…
↗
22
9046415M0800
Clamp (6h1)
Loading…
↗
23
688427261000
Grommet
Loading…
↗
24
6G1427480000
Grommet
Loading…
↗
26
68842771018D
Apron
Loading…
↗
27
975950642000
Bolt(7u8)
Loading…
↗
30
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
