E40XMH (1999)
Bottom Cowling

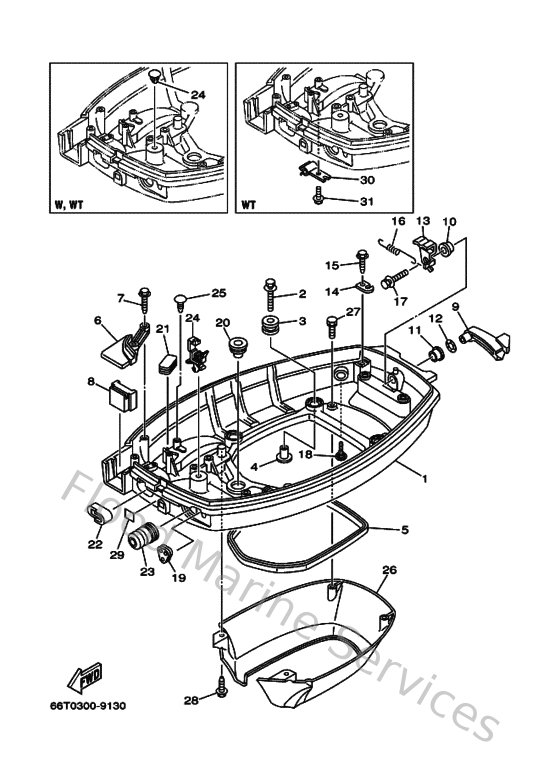

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
66T42710004D
Bottom cowling assembly
Loading…
↗
2
9011906M6100
Bolt, with washer
Loading…
↗
3
9048009M2100
Grommet (6e9)
Loading…
↗
4
9038706M4100
Coller (6e9)
Loading…
↗
5
66T427160000
Rubber, seal 1
Loading…
↗
6
66T4273800CA
Plate, fitting
Loading…
↗
7
9010906M8100
Bolt
Loading…
↗
8
66T427250000
Grommet
Loading…
↗
9
66T42815004D
Lever, clamp
Loading…
↗
10
9038612M3700
Bushing (6f5)
Loading…
↗
11
9038612MA200
Bush
Loading…
↗
12
902061205200
Washer, wave (666)
Loading…
↗
13
66T428160000
Lever, clamp
Loading…
↗
14
66T431440000
Hook, spring
Loading…
↗
15
9010906M8600
Bolt
Loading…
↗
16
9050616M3400
Spring, tension(64d)
Loading…
↗
17
9011906M7300
Bolt(gh1)
Loading…
↗
18
6E5443910000
Nipple, hose
Loading…
↗
19
65W263260000
Grommet
Loading…
↗
20
676427270000
Grommet 4
Loading…
↗
21
6H4427260000
Grommet
Loading…
↗
22
66T243290000
Seal
Loading…
↗
23
65W427260000
Grommet
Loading…
↗
24
9046525M5700
Clamp(63v)
Loading…
↗
25
9033805M0300
Plug (6h1)
Loading…
↗
26
66T427410000
Apron
Loading…
↗
27
975950651600
Bolt, with washer(6r6)
Loading…
↗
28
9010906M8000
Bolt
Loading…
↗
29
6A1427920100
Mark (100:1)
Loading…
↗
