F20AM (2000)
Bottom Cowling

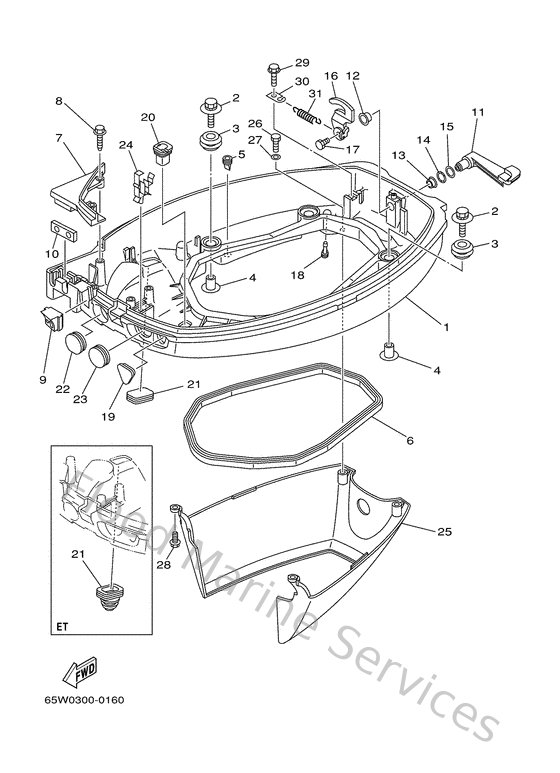

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
65W42710044D
Bottom Cowling assembly
Loading…
↗
2
9011906M0800
Bolt, with washer
Loading…
↗
3
9048009M1200
Grommet (6a0)
Loading…
↗
4
9038706M6900
Collar (688)
Loading…
↗
5
65W427170000
Rubber, seal 2
Loading…
↗
6
62Y427160000
Rubber seal 1
Loading…
↗
7
65W42738014D
Plate, fitting
Loading…
↗
8
9010906M8200
Bolt
Loading…
↗
9
65W427250000
Grommet
Loading…
↗
11
65W42815014D
Lever, clamp 1
Loading…
↗
12
9038612M3700
Bushing (6f5)
Loading…
↗
13
9038612MA200
Bush
Loading…
↗
14
902061205200
Washer, wave (666)
Loading…
↗
15
9020112M0700
Washer, plate
Loading…
↗
16
65W428160300
Lever, Clamp
Loading…
↗
17
970800601200
Bolt(gh1)
Loading…
↗
18
6H3443910100
Nipple, hose
Loading…
↗
19
65W263260000
Grommet
Loading…
↗
20
682427270000
Grommet
Loading…
↗
22
6G1427250000
Grommet
Loading…
↗
23
65W427260000
Grommet
Loading…
↗
24
9046525M5700
Clamp(63v)
Loading…
↗
25
65W427410100
Apron
Loading…
↗
26
970950601400
Bolt(gj3)
Loading…
↗
27
929950660000
Washer, plain (646)
Loading…
↗
28
9010906M8100
Bolt
Loading…
↗
29
9010906M8600
Bolt
Loading…
↗
30
66T431440000
Hook, spring
Loading…
↗
31
9050616M3400
Spring, tension(64d)
Loading…
↗
