FT9.9AMH (1986)
Bottom Cowling

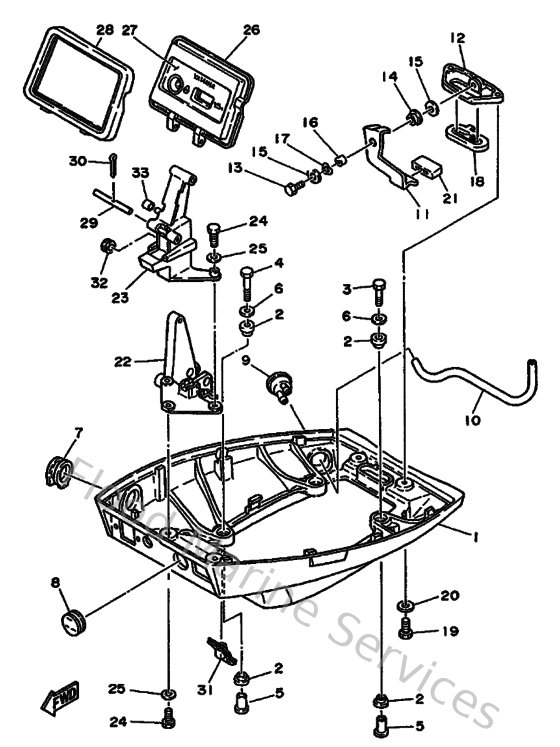

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
9048009M3500
Grommet (6G8)
Loading…
↗
3
973130603000
Bolt
Loading…
↗
4
973130604000
Bolt (682)
Loading…
↗
5
9038706M5800
Collar (6g8)
Loading…
↗
6
9020106M3100
Washer (6a0)
Loading…
↗
7
6G8427240000
Grommet 1
Loading…
↗
8
6G8427251000
Gr0Mmet 1
Loading…
↗
9
6G8443910000
Nipple, Hose
Loading…
↗
10
904450909600
Hose (l1500)
Loading…
↗
11
6G8428150000
Lever, clamp 1
Loading…
↗
12
6G8428110094
Stay, clamp
Loading…
↗
13
973130601600
Bolt, hexagon deep recess
Loading…
↗
14
9038608M4900
Bushing (6g8)
Loading…
↗
16
903870670400
Collar (796)
Loading…
↗
17
9020608M1300
Washer, Wave
Loading…
↗
18
6G8427480000
Grommet
Loading…
↗
19
973950601600
Bolt, hexagon deep recess
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
6G8428310000
Bushing Lever
Loading…
↗
22
6G8427380094
Plate Fitting
Loading…
↗
23
6G84271900EL
Panel Front Lower
Loading…
↗
24
970950601600
Bolt, hexagon deep recess
Loading…
↗
26
6G8W42610000
Panel, Front Upper
Loading…
↗
28
6G8426290100
Seal
Loading…
↗
29
6G8427550000
Hinge, cowling
Loading…
↗
30
914901601000
Pin, cotter
Loading…
↗
31
6G8427270000
Grommet 4
Loading…
↗
32
904801903100
Grommet(75v)
Loading…
↗
