Yamaha Outboard Parts - Bottom Cowling - FT9.9DMHSL (2001) | Flood Marine

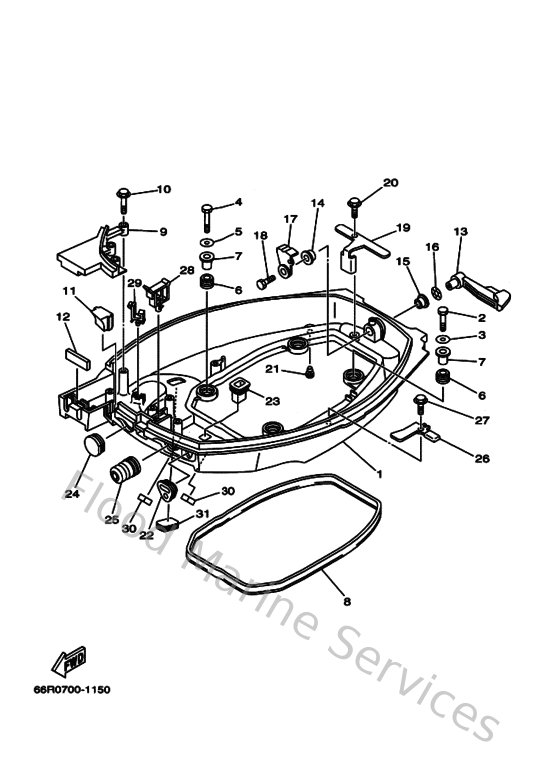

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
66M42710034D
Bottom Cowling assembly
Loading…

↗
2
970950603500
Bolt(j52)
Loading…

↗
3
929900660000
Washer, plain (646)
Loading…

↗
4
970950602500
Bolt
Loading…

↗
5
929950660000
Washer, plain (646)
Loading…

↗
6
9048015M3100
Grommet (6g1)
Loading…

↗
7
9038706M5200
Collar (6g1)
Loading…

↗
8
66M427160000
Rubber, seal 1
Loading…

↗
9
66M42738004D
Plate, fitting
Loading…

↗
10
9010906M8200
Bolt
Loading…

↗
11
66M427250000
Grommet
Loading…

↗
12
65W427270000
Grommet
Loading…

↗
13
66M42815004D
Lever, clamp 1
Loading…

↗
14
9038612M3700
Bushing (6f5)
Loading…

↗
15
9038612MA200
Bush
Loading…

↗
16
902061205200
Washer, wave (666)
Loading…

↗
17
6L2428160000
Lever, clamp
Loading…

↗
18
970950601200
Bolt(gh1)
Loading…

↗
19
66M427660000
Bracket 2
Loading…

↗
20
9010906M8600
Bolt
Loading…

↗
21
6BL443910000
Nipple, hose
Loading…

↗
22
66M263260000
Grommet
Loading…

↗
23
682427270000
Grommet
Loading…

↗
24
6G1427240000
Grommet
Loading…

↗
25
65W427260000
Grommet
Loading…

↗
26
66M427430000
Bracket
Loading…

↗
28
9046525M5700
Clamp(63v)
Loading…

↗
29
9046409M1300
Clamp (6h1)
Loading…

↗
30
66R445320000
Stopper Upper Mount
Loading…

↗
31
6H4427260000
Grommet
Loading…

↗
