Yamaha Outboard Parts - Bracket - 15DWH (1985) | Flood Marine

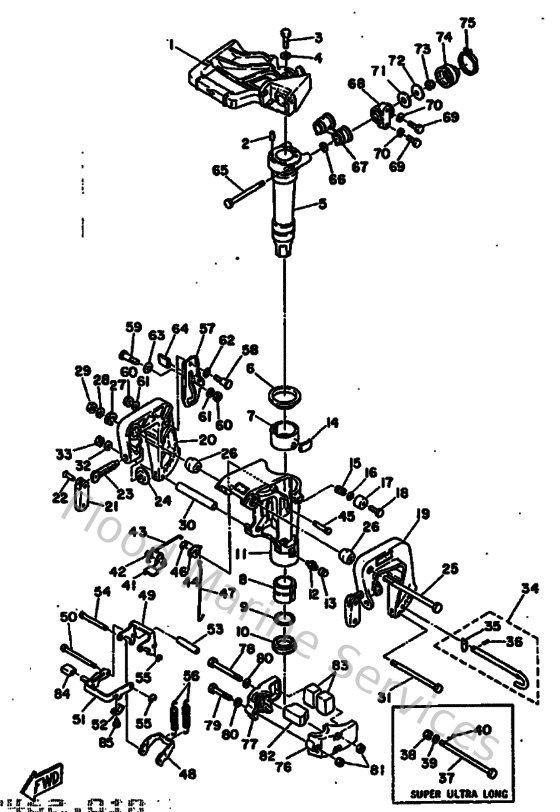

Diagram: Bracket

Diagram

Parts List

Reference
Description
Price


5
6824252100EJ
Shaft, steering pivot
Loading…

↗
7
682425370000
Bushing, pivot shaft
Loading…

↗
11
6824331102EJ
Bracket Swivel
Loading…

↗
13
663451190000
Cap, grease nipple
Loading…

↗
14
648425280000
Plate, friction
Loading…

↗
17
676433730000
Damper, seal
Loading…

↗
21
6164311800EJ
Handle, transom clamp
Loading…

↗
24
648431140100
Pad, transom clamp
Loading…

↗
26
626431360000
Piece,friction
Loading…

↗
34
682431600100
Tilt rod assembly
Loading…

↗
35
656431650100
Plate, tilt lock
Loading…

↗
36
916903000800
Pin. spring(656)
Loading…

↗
37
9010208M0100
Bolt (682)
Loading…

↗
38
9017108M0000
Nut, castle (682)
Loading…

↗
39
929900860000
Washer, plain (663)
Loading…

↗
40
914902001500
Pin, cotter (648)
Loading…

↗
41
682436310000
Lever, Tilt
Loading…

↗
42
9050812M0300
Spring, Torsion
Loading…

↗
43
682436160000
Rod, tilt lock 1
Loading…

↗
44
682436410100
Lever, tilt
Loading…

↗
45
902490611700
Pin(6e7)
Loading…

↗
46
934300502700
Circlip(22k)
Loading…

↗
47
682436170000
Rod, tilt lock 2
Loading…

↗
48
682436140000
Plate, tilt lock 1
Loading…

↗
49
682436150100
Plate, tilt lock
Loading…

↗
50
682436590000
Shaft, reverse lock
Loading…

↗
52
682436430000
Spring
Loading…

↗
53
9038706M1000
Collar(6m7)
Loading…

↗
54
682436110100
Shaft, tilt lock
Loading…

↗
56
9050626M0100
Spring, tension (682)
Loading…

↗
58
9010906M0500
Bolt (682)
Loading…

↗
59
9010906M0300
Bolt (682)
Loading…

↗
60
953800670000
Nut
Loading…

↗
61
929900660000
Washer, plain (646)
Loading…

↗
62
9020610M0400
Washer, wave (676)
Loading…

↗
63
682433390100
Washer
Loading…

↗
64
682433180100
Cover
Loading…

↗
65
9010108M3000
Bolt (682)
Loading…

↗
66
9020108M1200
Washer plate (682)
Loading…

↗
67
682445210100
Seal
Loading…

↗
68
6824451431CA
Mount damper, upper side
Loading…

↗
69
9010106M2700
Bolt
Loading…

↗
71
9020213M0200
Washer plate (682)
Loading…

↗
72
9020108M1300
Washer plate (682)
Loading…

↗
73
957800830000
Nut, nylon (6j8)
Loading…

↗
74
682445220000
Seal
Loading…

↗
75
9046042M0100
Clamp, Hose
Loading…

↗
78
975950858500
Bolt, with washer
Loading…

↗
79
973950805500
Bolt, hexagon
Loading…

↗
81
953800870000
Nut(661)
Loading…

↗
82
682445570000
Mount damper, lower front
Loading…

↗
83
682445550000
Mount damper, lower side
Loading…

↗
85
973950600800
Bolt (fj1)
Loading…

↗
