50DEMTO (1988)
Bracket

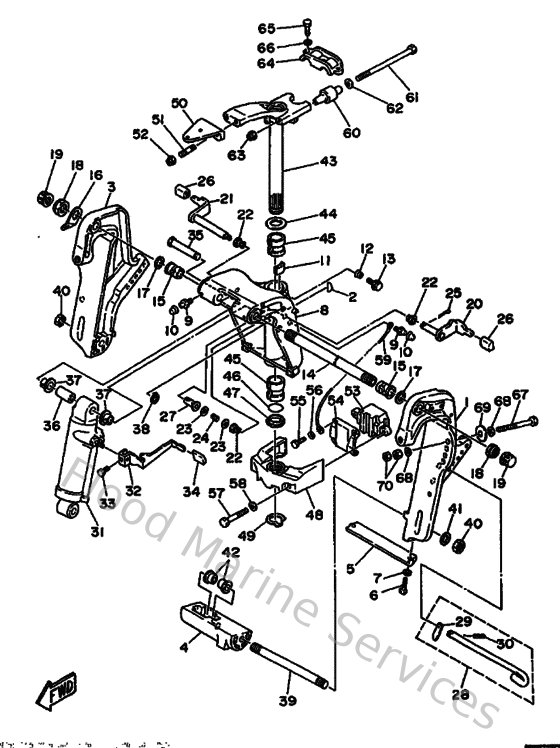

Diagram: Bracket
Parts List
Reference
Description
Price
5
6H1452510000
Anode set
Loading…
↗
6
973950603000
Bolt(jf7)
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
9
937000600400
Nipple, grease(6a1)
Loading…
↗
10
663451190000
Cap, grease nipple
Loading…
↗
11
6H4425280000
Piece, friction
Loading…
↗
12
689433730100
Seal, damper
Loading…
↗
13
9010506M1800
Bolt (689)
Loading…
↗
14
6J8431310100
Bolt, clamp bracket
Loading…
↗
15
9038622M1500
Bushing (688)
Loading…
↗
16
6J8431130100
Plate, clamp bracket
Loading…
↗
17
9020122M0300
Washer, plate(64j)
Loading…
↗
18
901852204300
Nut, self-locking
Loading…
↗
19
663431450000
Cap, clamp bracket
Loading…
↗
20
6H5431810100
Lever, Tilt Stop
Loading…
↗
21
6H5431850100
Lever, Tilt Stop
Loading…
↗
22
9038610M1600
Bushing (688)
Loading…
↗
23
929901060000
Washer, plate
Loading…
↗
24
9050110M2100
Spring (688)
Loading…
↗
25
914903003000
Pin, cotter
Loading…
↗
26
663433180000
Cover
Loading…
↗
27
9038610M1900
Bush
Loading…
↗
28
676431600100
Tilt rod assembly
Loading…
↗
29
676431650000
Stopper plate, titl lock rod
Loading…
↗
30
916903001200
Pin, spring
Loading…
↗
33
973950601000
Bolt
Loading…
↗
34
682433180100
Cover
Loading…
↗
35
6H5431260200
Pin, Upper Shock Mount
Loading…
↗
36
9038612M6500
Bush
Loading…
↗
37
9038612M6400
Bush(6h4)
Loading…
↗
38
9341012M0800
Circlip
Loading…
↗
39
9011618M2100
Bolt, Stud
Loading…
↗
40
9017018M1000
Nut (6h5)
Loading…
↗
41
929901860000
Washer(64j)
Loading…
↗
42
9038618M4400
Bushing (6g5)
Loading…
↗
43
6H44251009EJ
Steering Bracket assembly
Loading…
↗
44
9020130M0000
Washer, plate(6h1)
Loading…
↗
45
903863004800
Bush
Loading…
↗
47
9038630M6000
Bush(6j8)
Loading…
↗
49
9341028M0600
Circlip (688)
Loading…
↗
50
6H448511514D
Hook, Steering
Loading…
↗
51
901161006300
Bolt, stud
Loading…
↗
52
901851005100
Nut, self-locking
Loading…
↗
53
6H4445570000
Mount, lower front
Loading…
↗
54
6H4445530100
Cover, lower mount
Loading…
↗
55
973950802500
Bolt (62g)
Loading…
↗
56
929900860000
Washer, plain (663)
Loading…
↗
57
970951006000
Bolt, hexagon
Loading…
↗
59
6H5821270000
Wire Lead
Loading…
↗
60
6H4445140000
Mount, upper side
Loading…
↗
61
9010108M8600
Bolt (6h4)
Loading…
↗
62
902010942500
Washer, plate (663)
Loading…
↗
63
901850804500
Nut, self-locking
Loading…
↗
64
6H4445110000
Cover, Upper Mount
Loading…
↗
65
973900803500
Bolt(70w)
Loading…
↗
66
929900810000
Ybs67-8 washer, spring
Loading…
↗
67
9010112M6500
Bolt
Loading…
↗
68
929951220000
Ybs66-12 washer,plain
Loading…
↗
69
902011242600
Washe, plate(663)
Loading…
↗
70
953801260000
Nut (707)
Loading…
↗
