15DWH (1989)
Bracket 1

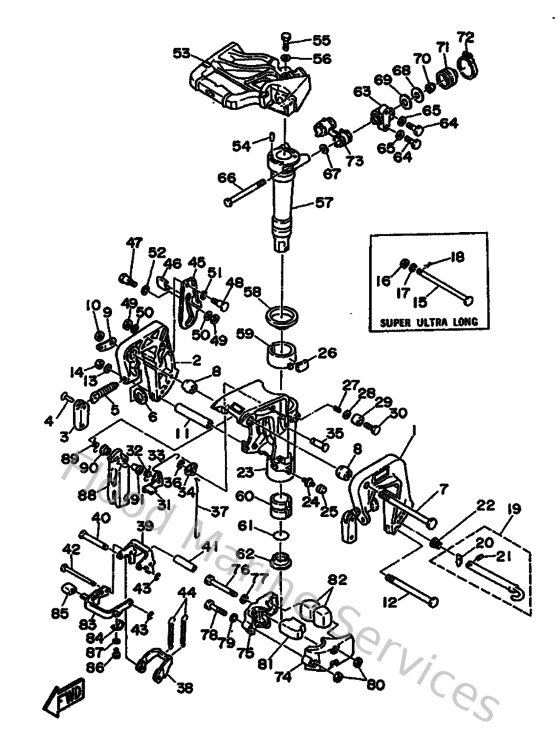

Diagram: Bracket 1
Parts List
Reference
Description
Price
2
6824311202EJ
Bracket, Clamp
Loading…
↗
3
6164311800EJ
Handle, transom clamp
Loading…
↗
4
9024304M0000
Pin(6a9)
Loading…
↗
5
9014914M0300
Screw(6j8)
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
9010110M0100
Bolt(6e7)
Loading…
↗
8
626431360000
Piece,friction
Loading…
↗
9
6E7431130000
Plate, clamp bracket
Loading…
↗
10
901851002700
Nut, self-locking
Loading…
↗
11
9038706M1300
Collar(6h6)
Loading…
↗
12
9010106M2900
Bolt, hexagon (682)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
953800670000
Nut
Loading…
↗
16
9017108M0000
Nut, castle (682)
Loading…
↗
17
929900860000
Washer, plain (663)
Loading…
↗
18
914902001500
Pin, cotter (648)
Loading…
↗
19
682431600100
Tilt rod assembly
Loading…
↗
20
656431650100
Plate, tilt lock
Loading…
↗
21
916903000800
Pin. spring(656)
Loading…
↗
22
9050210M0700
Spring, conical(6k3)
Loading…
↗
23
6824331103EJ
Bracket Swivel
Loading…
↗
24
937000600400
Nipple, grease(6a1)
Loading…
↗
25
663451190000
Cap, grease nipple
Loading…
↗
26
648425280000
Plate, friction
Loading…
↗
27
9050118M0000
Spring, compression (676)
Loading…
↗
29
676433730000
Damper, seal
Loading…
↗
30
973950802500
Bolt (62g)
Loading…
↗
31
682436310000
Lever, Tilt
Loading…
↗
32
9050812M0300
Spring, Torsion
Loading…
↗
33
682436160000
Rod, tilt lock 1
Loading…
↗
34
682436410000
Lever, tilt
Loading…
↗
35
9024906M2300
Pin(6e7)
Loading…
↗
36
990800560000
Circlip(22k)
Loading…
↗
37
682436170000
Rod, tilt lock 2
Loading…
↗
38
682436140000
Plate, tilt lock 1
Loading…
↗
39
682436150100
Plate, tilt lock
Loading…
↗
40
682436110000
Shaft, tilt lock
Loading…
↗
41
9038706M2000
Collar(6m7)
Loading…
↗
42
682436590000
Shaft, reverse lock
Loading…
↗
44
9050626M0100
Spring, tension (682)
Loading…
↗
45
6E7431810100
Lever, tilt stop 1
Loading…
↗
46
682433180100
Cover
Loading…
↗
47
9010906M0300
Bolt (682)
Loading…
↗
48
9010906M0500
Bolt (682)
Loading…
↗
49
956800610000
U-nut (6a5)
Loading…
↗
51
9020610M1500
Washer, wave (6e7)
Loading…
↗
52
682433390100
Washer
Loading…
↗
54
936061201900
Pin, dowel (614)
Loading…
↗
55
973950602500
Bolt
Loading…
↗
57
682425210000
Shaft, steering pivot
Loading…
↗
59
682425370000
Bushing, pivot shaft
Loading…
↗
60
9038640M0900
Bush (682)
Loading…
↗
61
9321040M1000
O-ring (682)
Loading…
↗
62
9038640M0800
Bush (682)
Loading…
↗
63
6824451431CA
Mount damper, upper side
Loading…
↗
66
9010108M3000
Bolt (682)
Loading…
↗
67
9020108M1200
Washer plate (682)
Loading…
↗
68
9020108M1300
Washer plate (682)
Loading…
↗
69
9020213M0200
Washer plate (682)
Loading…
↗
70
957800830000
Nut, nylon (6j8)
Loading…
↗
71
682445220000
Seal
Loading…
↗
72
9046042M0100
Clamp, Hose
Loading…
↗
73
682445210100
Seal
Loading…
↗
76
975950858500
Bolt, with washer
Loading…
↗
78
973950805500
Bolt, hexagon
Loading…
↗
80
953800870000
Nut(661)
Loading…
↗
81
682445570000
Mount damper, lower front
Loading…
↗
82
682445553000
Mount damper, lower side
Loading…
↗
84
682436430000
Spring
Loading…
↗
86
973950600800
Bolt (fj1)
Loading…
↗
90
903861002500
Bushing (658)
Loading…
↗
91
903861004500
Bush (663)
Loading…
↗
