30DMH (1986)
Bracket 1

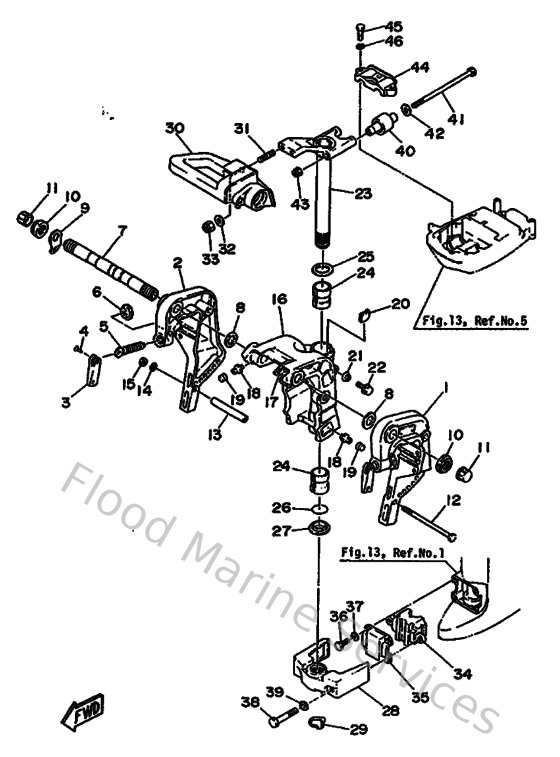

Diagram: Bracket 1
Parts List
Reference
Description
Price
3
6164311800EJ
Handle, transom clamp
Loading…
↗
4
902430400100
Pin(6a9)
Loading…
↗
5
9014914M0300
Screw(6j8)
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
6J8431310100
Bolt, clamp bracket
Loading…
↗
8
902012242800
Washer, plate(64j)
Loading…
↗
9
6J8431130000
Plate, clamp bracket
Loading…
↗
10
901852204300
Nut, self-locking
Loading…
↗
11
6G5431450100
Cap, clamp bracket
Loading…
↗
12
901010833900
Bolt, hexagon (656)
Loading…
↗
13
903870907400
Collar
Loading…
↗
14
929900860000
Washer, plain (663)
Loading…
↗
15
988800810000
Nut, hex.
Loading…
↗
18
937000600400
Nipple, grease(6a1)
Loading…
↗
19
663451190000
Cap, grease nipple
Loading…
↗
20
6H4425280000
Piece, friction
Loading…
↗
21
689433730100
Seal, damper
Loading…
↗
22
9010506M1800
Bolt (689)
Loading…
↗
24
903863004800
Bush
Loading…
↗
25
902013042000
Washer, plate(6h1)
Loading…
↗
27
9038630M6000
Bush(6j8)
Loading…
↗
29
9341028M0600
Circlip (688)
Loading…
↗
31
9011610M2800
Bolt, stud
Loading…
↗
32
929901060000
Washer, plate
Loading…
↗
33
901851002700
Nut, self-locking
Loading…
↗
34
6H4445570000
Mount, lower front
Loading…
↗
35
6H4445530000
Cover, lower mount
Loading…
↗
36
970950802500
Bolt (62g)
Loading…
↗
38
973951006000
Bolt, hexagon
Loading…
↗
40
6H4445140000
Mount, upper side
Loading…
↗
41
9010908M2600
Bolt(6j8)
Loading…
↗
42
902010942500
Washer, plate (663)
Loading…
↗
43
901850804500
Nut, self-locking
Loading…
↗
45
973900803500
Bolt(70w)
Loading…
↗
46
929900810000
Ybs67-8 washer, spring
