9.9FMH (1998)
Bracket 1

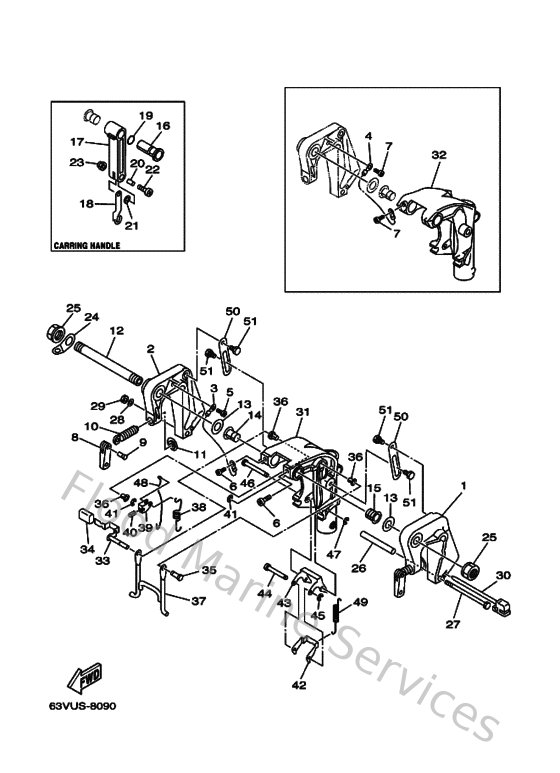

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
63V43111024D
Clamp bracket set
Loading…
↗
2
63V43112034D
Clamp bracket set
Loading…
↗
3
66M821480000
Wire, lead 4
Loading…
↗
4
6E5821480000
Wire, lead 5
Loading…
↗
5
978850600800
Screw, pan head(6a3)
Loading…
↗
6
978850801000
Rivet
Loading…
↗
8
6EEG31180000
Handle, transom cl
Loading…
↗
9
9024304M0100
Pin(6a1)
Loading…
↗
10
6E7431160000
Screw, transom clamp
Loading…
↗
11
648431140100
Pad, transom clamp
Loading…
↗
12
68T431310000
Bolt, clamp bracket
Loading…
↗
13
9020222M5400
Washer, plate(63v)
Loading…
↗
14
9038622M9400
Bush(63v)
Loading…
↗
16
9038622M6900
Bush(6k9)
Loading…
↗
17
63V42731004D
Carrying Handle
Loading…
↗
18
63V436760000
Hook
Loading…
↗
19
932102080100
O-ring
Loading…
↗
20
9038706M7500
Collar(63v)
Loading…
↗
21
902060801000
Washer(656)
Loading…
↗
22
978850602500
Screw, pan head(6b0)
Loading…
↗
23
957800630000
Nut, nylon (6g1)
Loading…
↗
24
6J8431130100
Plate, clamp bracket
Loading…
↗
25
63V431450000
Nut, self-locking
Loading…
↗
26
9038706M1300
Collar(6h6)
Loading…
↗
27
9010106M2900
Bolt, hexagon (682)
Loading…
↗
28
929950660000
Washer, plain (646)
Loading…
↗
29
953800670000
Nut
Loading…
↗
30
6L2431600000
Tilt rod assembly
Loading…
↗
31
999990391700
Bracket, swivel
Loading…
↗
32
63V43311014D
Bracket, swivel
Loading…
↗
33
63V436300000
Tilt lever assembly
Loading…
↗
34
682433180100
Cover
Loading…
↗
35
63V431910000
Shaft, stopper
Loading…
↗
36
9038607M9500
Bush(63v)
Loading…
↗
37
63V433500000
Receiver Assembly
Loading…
↗
38
9050720M0000
Spring, tension(63v)
Loading…
↗
39
63V436410000
Lever, Tilt
Loading…
↗
40
916903001200
Pin, spring
Loading…
↗
41
934300502700
Circlip(22k)
Loading…
↗
42
63V436140000
Plate, Tilt Lock
Loading…
↗
43
63V436150000
Plate, Tilt Lock
Loading…
↗
44
63V436110000
Shaft, Tilt Lock
Loading…
↗
46
63V436590000
Shaft, reverse lock
Loading…
↗
48
63V436170000
Rod, Tilt Lock
Loading…
↗
49
9050726M0000
Spring, tension(63v)
Loading…
↗
50
63V431810000
Lever, tilt stop 1
Loading…
↗
51
9010906M6900
Bolt
Loading…
↗
