E60HM (2001)
Bracket 1

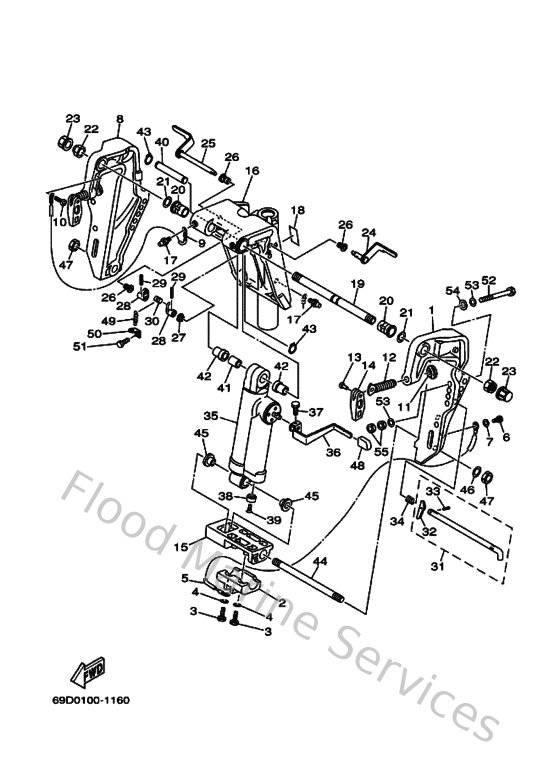

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
63D43111014D
Bracket, clamp 1
Loading…
↗
2
63D452510000
Anode
Loading…
↗
3
970950602500
Bolt
Loading…
↗
4
929950610000
Washer(6a1)
Loading…
↗
5
6H1821480000
Wire, lead
Loading…
↗
6
970850601000
Bolt
Loading…
↗
7
929950660000
Washer, plain (646)
Loading…
↗
8
63D43112014D
Bracket, clamp 2
Loading…
↗
9
63D821480000
Wire, lead 5
Loading…
↗
10
978850600800
Screw, pan head(6a3)
Loading…
↗
11
648431140100
Pad, transom clamp
Loading…
↗
12
663431160100
Screw, transom
Loading…
↗
13
902430400700
Pin (663)
Loading…
↗
14
66343118014D
Handle, transom clamp
Loading…
↗
15
63D43128014D
Spacer, clamp bracket
Loading…
↗
16
69D43311104D
Bracket, Swivel 1
Loading…
↗
17
9370006M0300
Nipple, grease(6a1)
Loading…
↗
18
63D436910000
Indicator, tilt
Loading…
↗
19
63D431310100
Bolt, clamp bracket
Loading…
↗
20
9038622M1500
Bushing (688)
Loading…
↗
21
9020122M0300
Washer, plate(64j)
Loading…
↗
22
9018522M1100
Nut, self-locking
Loading…
↗
23
6G5431450000
Cap, clamp bracket
Loading…
↗
24
6H5431810300
Lever, tilt stop 1
Loading…
↗
25
6H5431850300
Lever, tilt stop 2
Loading…
↗
26
9038610M1600
Bushing (688)
Loading…
↗
27
903861002500
Bushing (658)
Loading…
↗
28
6G5431480000
Collar, distance
Loading…
↗
29
916903002000
Pin, spring (6h4)
Loading…
↗
30
9024906M1900
Pin(6e5)
Loading…
↗
31
688431600100
Tilt rod ass'y
Loading…
↗
32
688431650000
Stopper, tilt rod
Loading…
↗
33
916903001200
Pin, spring
Loading…
↗
34
9050216M0200
Spring, conical (688)
Loading…
↗
35
69D43107124D
Shock absorber sub-assembly
Loading…
↗
36
69D436310000
Lever, tilt
Loading…
↗
37
970950601000
Bolt
Loading…
↗
38
663452510000
Anode
Loading…
↗
39
986800652500
Screw flat head
Loading…
↗
40
69D431260000
Pin, upper shock mount
Loading…
↗
41
903871600300
Collar
Loading…
↗
42
903871600400
Collar
Loading…
↗
43
934101600600
Circlip
Loading…
↗
44
9011618M5200
Bolt, stud(62x)
Loading…
↗
45
9038618M4400
Bushing (6g5)
Loading…
↗
46
929951860000
Washer(64j)
Loading…
↗
47
9017018M1000
Nut (6h5)
Loading…
↗
48
682433180100
Cover
Loading…
↗
49
9050614M2400
Spring, tension(6e5)
Loading…
↗
50
6G5431440000
Hook, spring
Loading…
↗
52
9010112M6500
Bolt
Loading…
↗
53
929951220000
Ybs66-12 washer,plain
Loading…
↗
54
902011242600
Washe, plate(663)
Loading…
↗
55
953801260000
Nut (707)
Loading…
↗
