F15AMH (1998)
Bracket 1

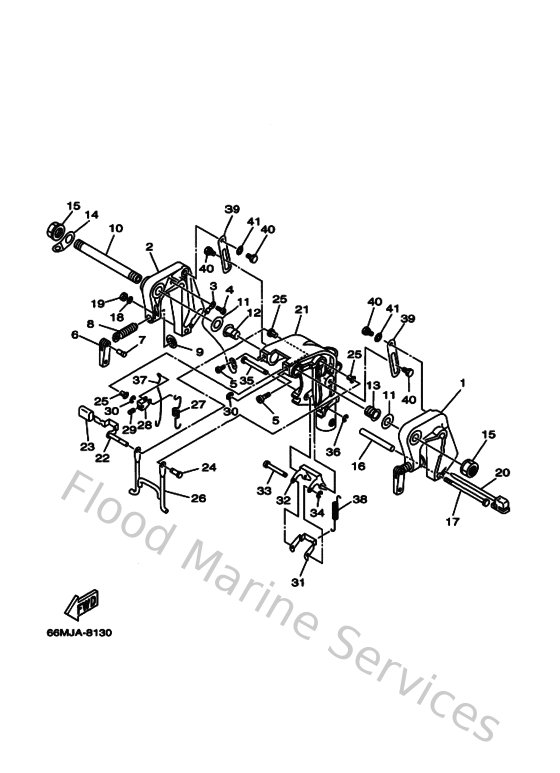

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
63V43111034D
Clamp bracket set
Loading…
↗
2
63V43112044D
Clamp bracket set
Loading…
↗
3
66M821480000
Wire, lead 4
Loading…
↗
4
978850600800
Screw, pan head(6a3)
Loading…
↗
5
978850801000
Rivet
Loading…
↗
6
6EEG31180000
Handle, transom cl
Loading…
↗
7
9024304M0100
Pin(6a1)
Loading…
↗
8
6E7431160000
Screw, transom clamp
Loading…
↗
9
648431140100
Pad, transom clamp
Loading…
↗
10
63V431311000
Bolt, clamp bracket
Loading…
↗
11
9020222M5400
Washer, plate(63v)
Loading…
↗
12
9038622M9400
Bush(63v)
Loading…
↗
14
66M431130000
Plate Clamp Bracket
Loading…
↗
15
63V431450000
Nut, self-locking
Loading…
↗
16
9038706M1300
Collar(6h6)
Loading…
↗
17
9010106M2900
Bolt, hexagon (682)
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
19
953800670000
Nut
Loading…
↗
20
6L2431600100
Tilt rod assembly
Loading…
↗
21
63V43311024D
Bracket, swivel
Loading…
↗
22
63V436300000
Tilt lever assembly
Loading…
↗
23
682433180100
Cover
Loading…
↗
24
63V431910000
Shaft, stopper
Loading…
↗
25
9038607M9500
Bush(63v)
Loading…
↗
26
66M433500000
Receiver Assembly
Loading…
↗
27
9050720M0000
Spring, tension(63v)
Loading…
↗
28
63V436410000
Lever, Tilt
Loading…
↗
29
916903001200
Pin, spring
Loading…
↗
30
990800560000
Circlip(22k)
Loading…
↗
32
63V436150000
Plate, Tilt Lock
Loading…
↗
33
63V436110000
Shaft, Tilt Lock
Loading…
↗
34
934300502700
Circlip(22k)
Loading…
↗
35
63V436590000
Shaft, reverse lock
Loading…
↗
37
63V436170000
Rod, Tilt Lock
Loading…
↗
38
9050726M0000
Spring, tension(63v)
Loading…
↗
39
63V431810000
Lever, tilt stop 1
Loading…
↗
40
9010906M8400
Bolt
Loading…
↗
41
9020610M2400
Washer, wave
Loading…
↗
