F6AMH (2001)
Bracket 1

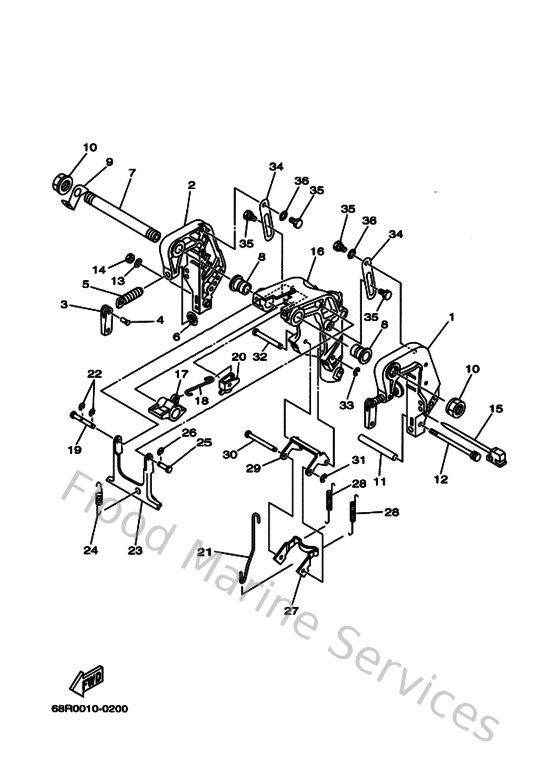

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
68T43111014D
Bracket clamp + screw
Loading…
↗
2
68T43112014D
Bracket clamp + screw
Loading…
↗
3
6EEG31180000
Handle, transom cl
Loading…
↗
4
9024304M0100
Pin(6a1)
Loading…
↗
5
677431160100
Screw, transom clamp.
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
63V431310000
Bolt, Clamp Bracket
Loading…
↗
8
9038622MA400
Bush
Loading…
↗
9
66R431130000
Plate, clamp bracket
Loading…
↗
10
63V431450000
Nut, self-locking
Loading…
↗
11
9038706M1300
Collar(6h6)
Loading…
↗
12
9010106M1800
Bolt(6l5)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
9538R0670000
Nut
Loading…
↗
15
6L2431600000
Tilt rod assembly
Loading…
↗
16
60RG3311104D
Bracket swivel1
Loading…
↗
17
68T436310000
Lever Tilt
Loading…
↗
18
68T436160000
Rod Tilt Lock
Loading…
↗
19
68T436460000
Shaft, lever
Loading…
↗
20
68T436410000
Lever, tilt
Loading…
↗
21
68T436170000
Rod, tilt lock
Loading…
↗
22
990800560000
Circlip(22k)
Loading…
↗
23
68T433500000
Receiver assembly
Loading…
↗
24
9050618M4100
Spring, tension
Loading…
↗
25
63V431910000
Shaft, stopper
Loading…
↗
27
68T436140000
Plate, tilt lock
Loading…
↗
28
9050620M4200
Spring, Tension
Loading…
↗
29
68T436150000
Plate, tilt lock
Loading…
↗
30
68T436110000
Shaft, tilt lock
Loading…
↗
31
990800460000
Circlip (eu0)
Loading…
↗
32
68T436590000
Shaft, reverse lock
Loading…
↗
34
68T436270000
Stopper
Loading…
↗
35
9010906M8400
Bolt
Loading…
↗
36
9020610M2400
Washer, wave
Loading…
↗
