FT9.9DMHSL (2000)
Bracket 1

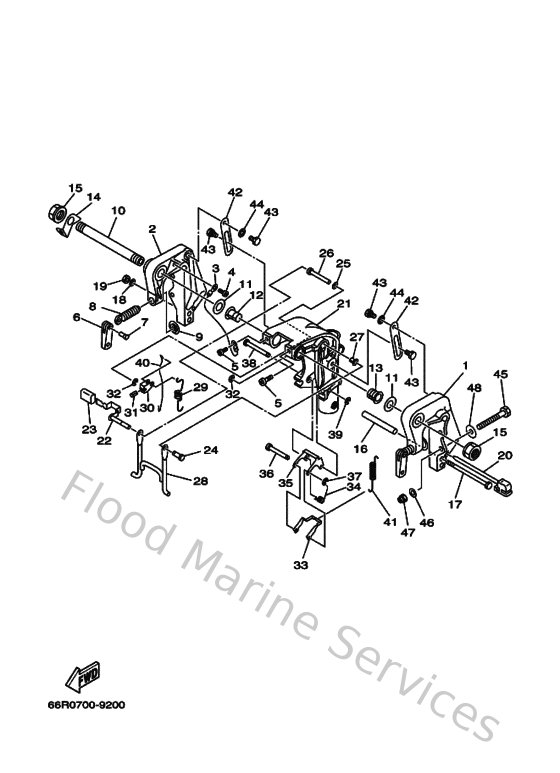

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
63V43111044D
Clamp bracket set
Loading…
↗
2
63V43112054D
Clamp bracket set
Loading…
↗
3
66M821480000
Wire, lead 4
Loading…
↗
4
978850600800
Screw, pan head(6a3)
Loading…
↗
5
978850801000
Rivet
Loading…
↗
6
6EEG31180000
Handle, transom cl
Loading…
↗
7
9024304M0100
Pin(6a1)
Loading…
↗
8
6E7431160000
Screw, transom clamp
Loading…
↗
9
648431140100
Pad, transom clamp
Loading…
↗
10
63V431311000
Bolt, clamp bracket
Loading…
↗
11
9020222M5400
Washer, plate(63v)
Loading…
↗
12
9038622M9400
Bush(63v)
Loading…
↗
14
66R431130000
Plate, clamp bracket
Loading…
↗
15
63V431450000
Nut, self-locking
Loading…
↗
16
9038706M1300
Collar(6h6)
Loading…
↗
17
9010106M2900
Bolt, hexagon (682)
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
19
9538R0670000
Nut
Loading…
↗
20
6L2431600000
Tilt rod assembly
Loading…
↗
21
63V43311024D
Bracket, swivel
Loading…
↗
22
999990392100
Tilt lever assembly
Loading…
↗
23
682433180100
Cover
Loading…
↗
24
63V431910000
Shaft, stopper
Loading…
↗
25
9020207M6000
Washer, plate
Loading…
↗
26
9038707M0700
Collar
Loading…
↗
27
9038607M9500
Bush(63v)
Loading…
↗
28
66M433500100
Receiver assembly
Loading…
↗
29
9050720M0000
Spring, tension(63v)
Loading…
↗
30
63V436410000
Lever, Tilt
Loading…
↗
31
916903001200
Pin, spring
Loading…
↗
32
934300502700
Circlip(22k)
Loading…
↗
33
66R436140000
Plate, tilt lock
Loading…
↗
34
9050818M4100
Spring, torsion
Loading…
↗
35
66R436150000
Plate, tilt lock
Loading…
↗
36
66R436110000
Shaft, tilt lock
Loading…
↗
37
990800460000
Circlip (eu0)
Loading…
↗
38
63V436590000
Shaft, reverse lock
Loading…
↗
40
66R436170000
Rod, tilt lock
Loading…
↗
41
9050626M3800
Spring, reverse lock 1
Loading…
↗
42
63V431810000
Lever, tilt stop 1
Loading…
↗
43
9010906M8400
Bolt
Loading…
↗
44
9020610M2400
Washer, wave
Loading…
↗
45
9010108M8800
Bolt (6g8)
Loading…
↗
46
929950860000
Washer, plain (663)
Loading…
↗
47
901850805700
Nut, nylon (6j8)
Loading…
↗
48
9020108MA400
Washer, plate (6g8)
Loading…
↗
