225GETOL (2000)
Bracket 2

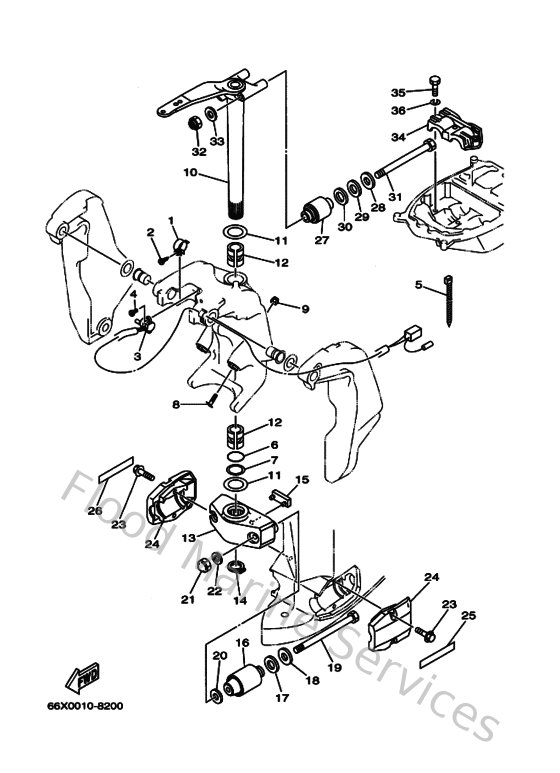

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
64E431390000
Cam, trim sender (with screw)
Loading…
↗
2
977806052500
Screw, tapping(65j)
Loading…
↗
3
64E836720000
Trim sender
Loading…
↗
4
901570600900
Screw, pan head(6b0)
Loading…
↗
5
9046511M1000
Clamp
Loading…
↗
6
9321037MH700
O-ring(61u)
Loading…
↗
7
9020240M4700
Washer, plate(61a)
Loading…
↗
8
64E433760000
Bolt, thrust receiver
Loading…
↗
9
957801030000
Nut, nylon (6e5)
Loading…
↗
10
66K42510008D
Steering bracket assembly
Loading…
↗
11
9020138M6000
Washer, plate (6e5)
Loading…
↗
12
9038638M8900
Bush(6e5)
Loading…
↗
13
66K44551008D
Housing, lower mount rubber
Loading…
↗
14
9341037M0400
Circlip (6e5)
Loading…
↗
15
6E5445750000
Damper, lower mount rubber
Loading…
↗
16
66K445550094
Mount damper, lower side
Loading…
↗
17
9020232M1900
Washer, plate (6e5)
Loading…
↗
18
9020116M5500
Washer, plate (6e5)
Loading…
↗
19
9010914M8000
Bolt
Loading…
↗
20
9020115M5800
Washer, plate (6e5)
Loading…
↗
21
953801480000
Nut, crown (6e5)
Loading…
↗
22
929951460000
Washer (6e5)
Loading…
↗
23
9010110M7000
Bolt(6j9)
Loading…
↗
24
66K4455300NA
Cover, lower mount
Loading…
↗
25
65N43155N000
Mark 1
Loading…
↗
26
65N43156N000
Mark 2
Loading…
↗
27
66K445140094
Mount damper, upper side
Loading…
↗
28
9020116M0100
Washer, plate(61a)
Loading…
↗
29
9020228M4600
Washer, plate(61a)
Loading…
↗
30
9020128M0100
Washer, plate(61a)
Loading…
↗
31
9010914M1000
Bolt
Loading…
↗
32
9018514M0000
Nut, self-locking(61a)
Loading…
↗
33
929901460000
Washer (6e5)
Loading…
↗
34
61A445110094
Cover, upper mount
Loading…
↗
35
970951004500
Bolt(64d)
Loading…
↗
36
929951060000
Washer, plate
Loading…
↗
