40VMO (1995)
Bracket 2

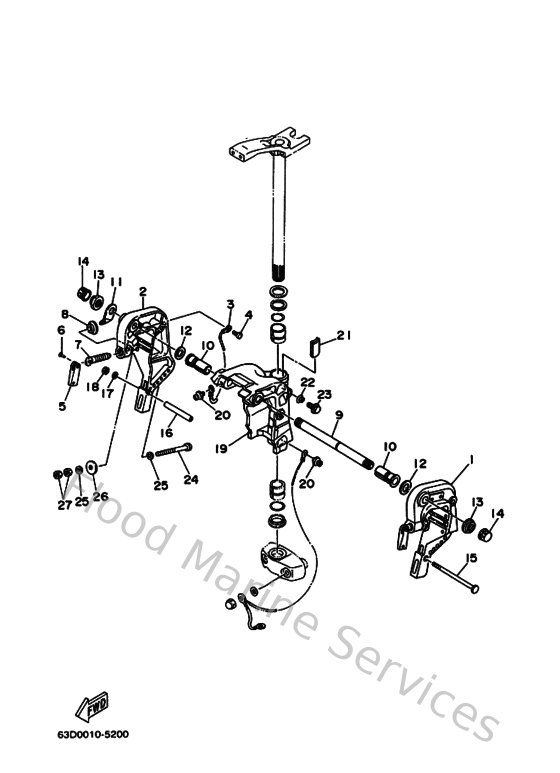

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
6H443111054D
Bracket, clamp 1
Loading…
↗
2
6H443112044D
Bracket, clamp 2
Loading…
↗
3
6E5821480000
Wire, lead 5
Loading…
↗
4
978850600800
Screw, pan head(6a3)
Loading…
↗
5
61643118004D
Handle, transom clamp
Loading…
↗
6
9024304M0000
Pin(6a9)
Loading…
↗
7
9014914M1200
Screw(6h4)
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
63D431310000
Bolt, clamp bracket
Loading…
↗
10
9038622M6900
Bush(6k9)
Loading…
↗
11
6J8431130100
Plate, clamp bracket
Loading…
↗
12
902012242800
Washer, plate(64j)
Loading…
↗
13
9018522M1100
Nut, self-locking
Loading…
↗
14
6G5431450100
Cap, clamp bracket
Loading…
↗
15
901010833900
Bolt, hexagon (656)
Loading…
↗
16
9038708M0300
Collar
Loading…
↗
17
929900860000
Washer, plain (663)
Loading…
↗
18
953800860000
Nut (661)
Loading…
↗
19
6J843311048D
Bracket, swivel 1
Loading…
↗
20
9370006M0300
Nipple, grease(6a1)
Loading…
↗
21
6J8425280000
Plate, friction
Loading…
↗
22
689433730100
Seal, damper
Loading…
↗
23
9010506M1800
Bolt (689)
Loading…
↗
24
9010110M5800
Bolt
Loading…
↗
25
929901060000
Washer, plate
Loading…
↗
26
902011242600
Washe, plate(663)
Loading…
↗
27
953801060000
Nut(624)
