F15AMH (1998)
Bracket 2

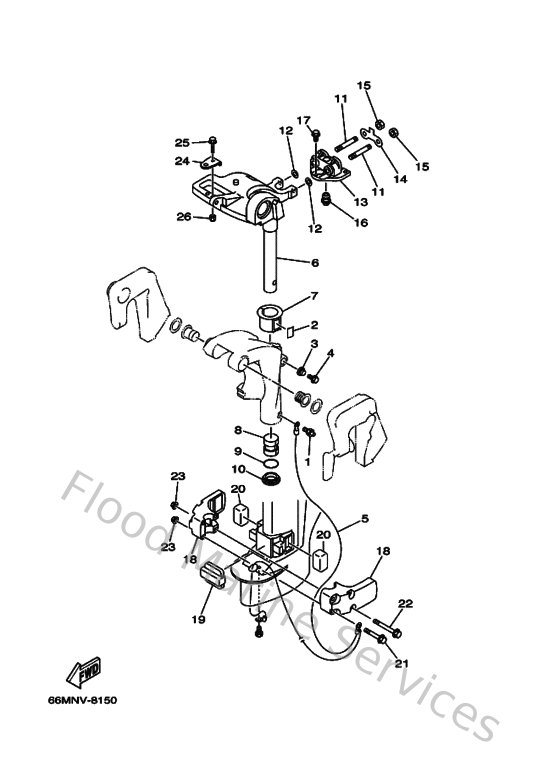

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
9370006M0300
Nipple, grease(6a1)
Loading…
↗
2
63V425280000
Plate, friction
Loading…
↗
3
689433730100
Seal, damper
Loading…
↗
4
9010506M0700
Bolt (689)
Loading…
↗
5
66M821270000
Wire, Lead 2
Loading…
↗
6
66M42511114D
Bracket, steering
Loading…
↗
7
63V425370000
Bushing, pivot shaft
Loading…
↗
8
903863004800
Bush
Loading…
↗
9
9321029M9400
O-ring(6h1)
Loading…
↗
10
9038630M6000
Bush(6j8)
Loading…
↗
11
9011608M5400
Bolt, stud(63v)
Loading…
↗
12
9020108M0600
Washer, plate
Loading…
↗
13
66M44514004D
Mount damper, upper side
Loading…
↗
14
66M445260000
Plate
Loading…
↗
15
953800860000
Nut (661)
Loading…
↗
16
66M443660000
Damper, water seal
Loading…
↗
17
975750652500
Bolt, hexagon w/w deep recess
Loading…
↗
18
66M44551004D
Housing, lower mount rubber 1
Loading…
↗
19
66M445570000
Mount damper, lower front
Loading…
↗
20
682445553000
Mount damper, lower side
Loading…
↗
21
9011908M4500
Bolt, with washer
Loading…
↗
22
9011908M4600
Bolt, with washer
Loading…
↗
23
9017908M3400
Nut
Loading…
↗
