E40XMH (2001)
Bracket 3

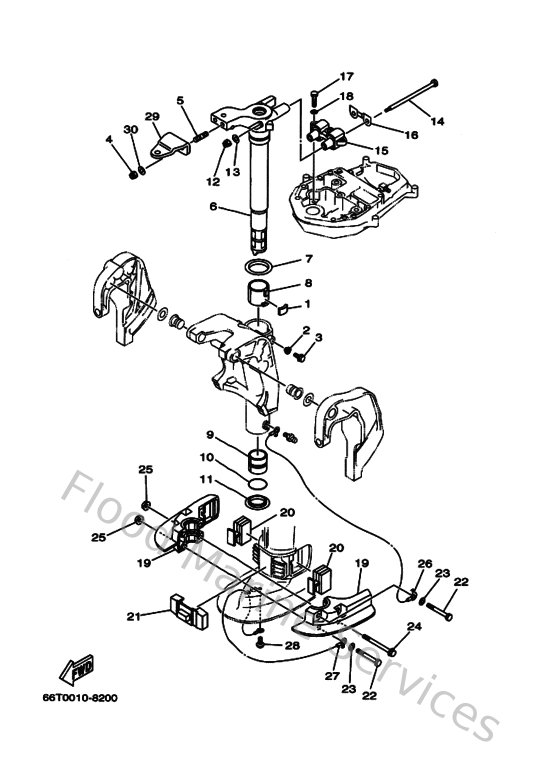

Diagram: Bracket 3
Parts List
Reference
Description
Price
1
648425280000
Plate, friction
Loading…
↗
2
65W433730000
Seal, damper
Loading…
↗
3
9010508M7600
Bolt, washer based
Loading…
↗
4
901851005100
Nut, self-locking
Loading…
↗
5
9011610M2800
Bolt, stud
Loading…
↗
6
65W42511118D
Bracket, steering
Loading…
↗
7
9020952M0000
Washer (676)
Loading…
↗
8
9038652M0200
Bushing (676)
Loading…
↗
9
9038644M0300
Bushing (676)
Loading…
↗
10
9321043MJ000
O-ring
Loading…
↗
11
9038644M9900
Bush
Loading…
↗
12
901850804500
Nut, self-locking
Loading…
↗
13
929070820000
Washer(6tc)
Loading…
↗
14
9010108M8600
Bolt (6h4)
Loading…
↗
15
66T44514004D
Mount damper, upper side
Loading…
↗
16
66T445260000
Plate
Loading…
↗
17
970750803000
Bolt, hexagon (fj1)
Loading…
↗
18
929950810000
Ybs67-8 washer, spring
Loading…
↗
19
65W44551004D
Housing, lower mount rubber 1
Loading…
↗
20
65W445551000
Mount damper, lower side
Loading…
↗
21
66T445750000
Damper, lower mount rubber
Loading…
↗
22
970751007000
Bolt, hexagon w/w deep recess
Loading…
↗
23
929951060000
Washer, plate
Loading…
↗
24
9011910M0400
Bolt, with washer
Loading…
↗
25
9017910M3300
Nut
Loading…
↗
